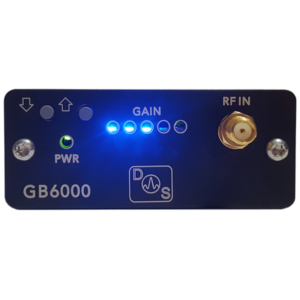

GB6000 - Variable low power Amplifier  6GHz

Main features

  • Frequency Range: 10MHz – 6GHz
  • Amplifier Gain (Max): 30dB
  • Amplifier Gain (Min): 0dB
  • p1dB: +21dBm
  • Noise Figure: 8dB
  • Connectors: 18GHz Microwave Gold SMA
  • Gain step size: 0.5dB
  • Return Loss: > 12dB
  • Micro USB 5v power input
Price request Datasheet

The wideband GB6000 provides a convenient and inexpensive way to amplify signals from 10-6000MHz for many different projects and applications. Micro-USB power and digital gain control makes this device much faster to integrate, and more flexible than traditional lab-powered devices.

GB6000Variable low power Amplifier  6GHz
