PA6000L - 1 Watt variable low power amplifier  6GHz

Main features

  • Frequency Range: 1.5GHz – 6.0GHz
  • Amplifier Gain (Max): 30dB
  • Amplifier Gain (Min): 0dB
  • Gain step size: 0.25dB
  • Typical Output Power: +30dBm
  • Saturated Output Power: >+32dBm
  • Connectors: 18GHz Microwave Gold SMA
  • Return Loss: > 12dB
  • Micro USB virtual com port control
  • Power Input: 32VDC barrel-plug adapter (included)
Price request Datasheet Ask a question

The wideband PA6000L provides a convenient and flexible way to amplify signals from 1.5-6.0GHz for a variety of RF applications. The micro-USB port allows for easy integration into automated test environments using SCPI serial commands.

Power and gain control along with temperature and voltage monitoring make this device much faster to setup and implement than competing devices. All linear regulation, gate biasing, and power-up sequencing are done internally by the onboard controller.

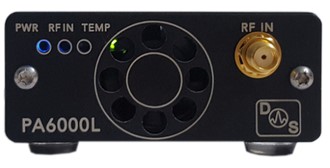

PA6000L 1 Watt variable low power amplifier  6GHz
