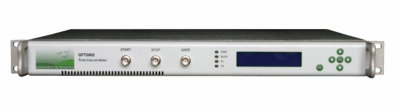

GFT2002 - Time Interval Analyzer

Main features

  • Two Channels (Start, Stop)
    • 1ps one-shot time resolution
    • < 10ps rms time interval jitter
    • ± 1 second time interval range
  • 19’’, compact rack,
  • Ethernet interface
Price request Datasheet

The GFT2002 is very precise time interval analyzer with low jitter. It has two inputs: one Start and one Stop.

Reading data represent the time interval between one start and one stop. Trigger level and slope are adjustable on each input. The module uses a linear interpolation technique and an internal calibration to obtain very high accuracy. The module uses an internal 10MHz very stable oscillator or an external clock. A software interface is included with the Time Interval meter analyzer and allows the programming of sample number, triggering conditions and the reading of time interval measurement.

The GFT2002 is a low profile 19″, 1U rack instrument with Ethernet interface. The instrument as a built in Web server that provide a remote control via a standard Web Browser. Web pages from embedded web server provide simple method for setting and reading the time interval values.

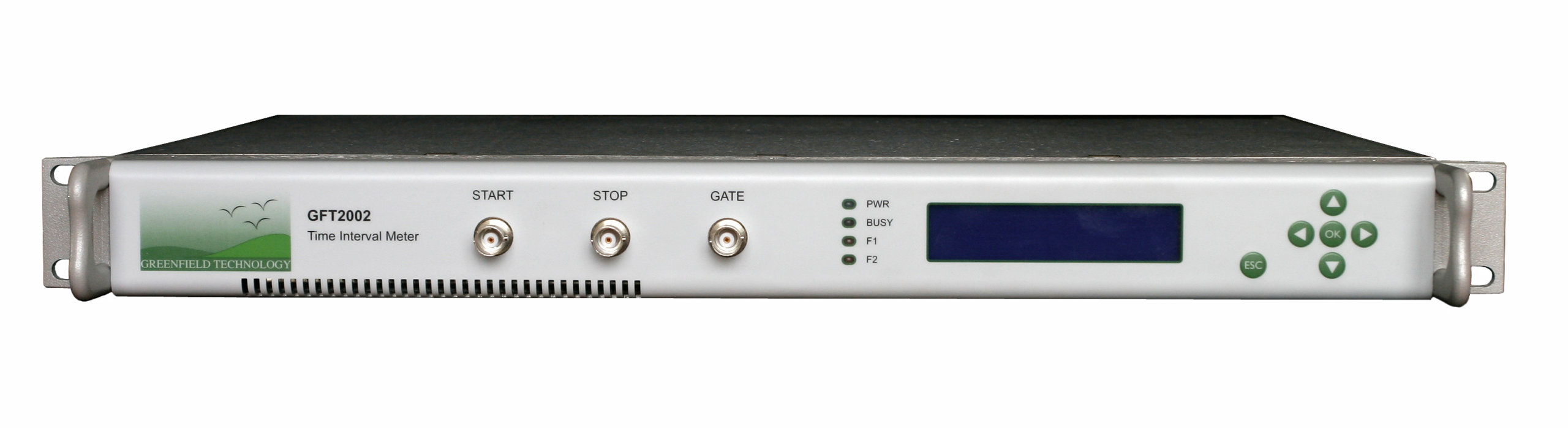

GFT2002Time Interval Analyzer
