GFT2044 - Synchronized 1 to 4 GHz Clock Drivers

Main features

  • 4 synchronous high speed clock drivers
  • 1 to 4 GHz Clock frequency
  • Programmable phase in step of 10 fs
  • -4 dBm to 5 dBm output clock level.
  • 1 ps channel to channel jitter
  • 100 MHz reference clock input
  • Easy remote controlled from standard Internet browser
Price request Datasheet Ask a question

The GFT2044 is designed to provide clock distribution to synchronize up to for (4) A/D and D/A systems
and arbitrary waveform generator.

Four synchronized onboard frequency synthesized generators allow to control the output clock up to 4 GHz. The synthesized generator is locked to an onboard 100 MHz reference clock and is used in conjunction with phase lock loop to control the programmed clock rate and phase value. An external 100 MHz reference can also be selected.

4 GPIO lines is available for communication to external equipment.

GFT2044 parameters may be remotely controlled over Ethernet and Internet via internal web server.

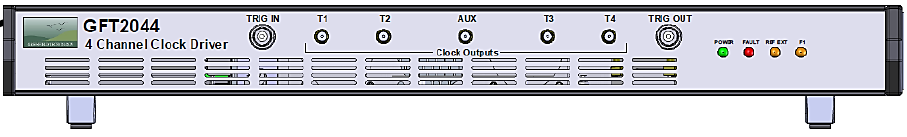

GFT2044 Synchronized 1 to 4 GHz Clock Drivers
