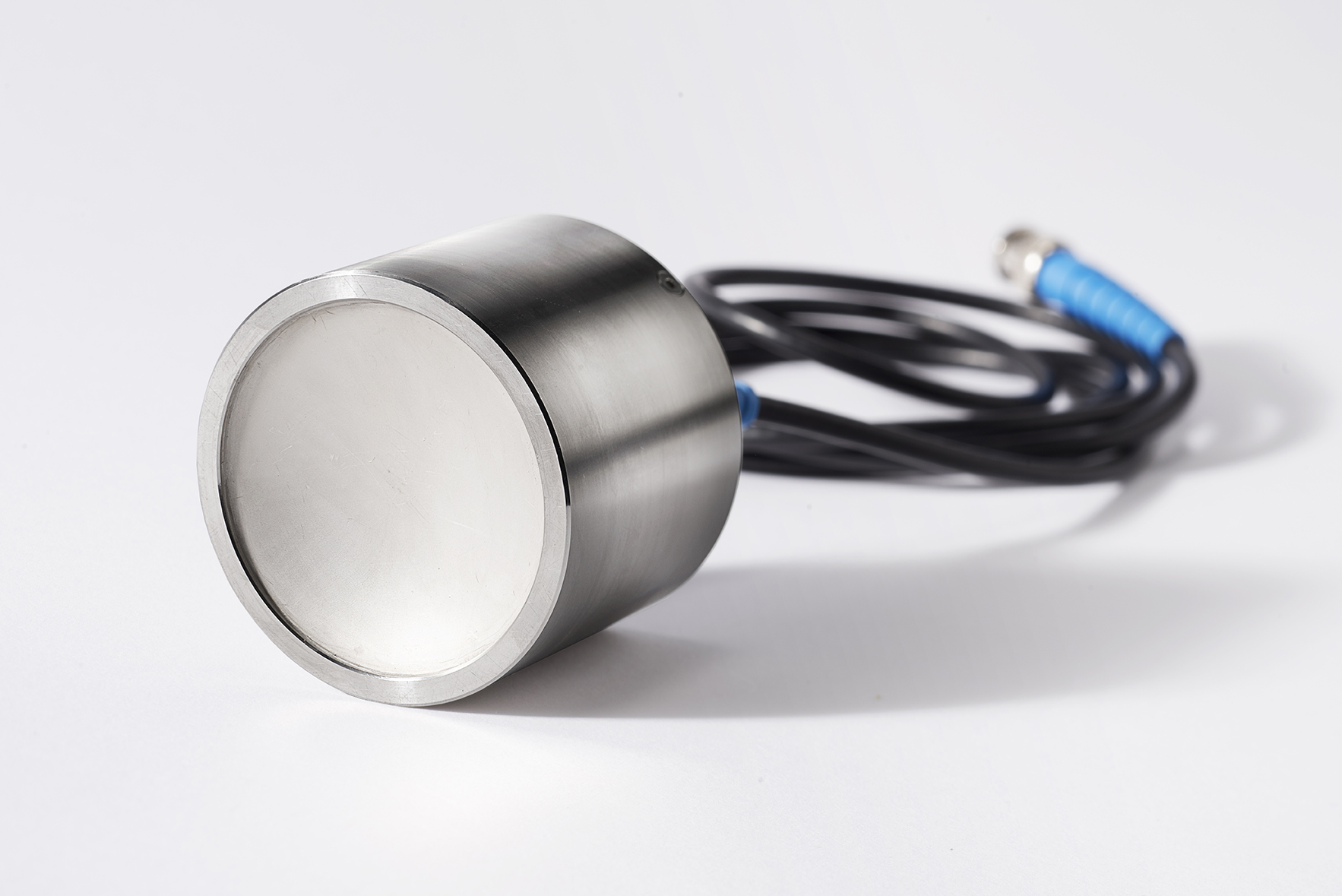

HIFU transducers - HIFU transducers

Main features

  • High power acoustic output with tight focal spot.
  • All devices (>1 MHz) produce focal outputs greater than 1 kW/cm2.
  • Designed for immersion use.
  • Impedance matched to 50 Ω.
  • Impedance matching network is integrated into case (no need for external matching network).
  • A 1.5 metre co-axial cable (BNC terminated) is supplied as standard but other options are available on request.
  • Each device is supplied with an in-house calibration certificate including transverse and axial beam profiles as well as frequency and power calibrations using a radiation force balance.
Price request Datasheet Ask a question

High Intensity Focussed Ultrasound (HIFU) is of considerable interest in both medical research and high-power applications. Precision Acoustics Ltd supplies a range of HIFU Transducers, all of which are designed for immersion use.

These devices are suitable for continuous wave or pulsed application and are highly resonant, narrowband ultrasound sources that are intended for use at, or very near, their centre frequency.

8000-6892 HIFU transducers
