HPDA-100RM - High performance distribution amplifier

Main features

  • 80-120 MHz
  • Unity gain
  • Return loss -25 dB
  • High isolation: 100 dB
  • Low phase noise:
    • -158 dBc/Hz @ 10 Hz
    • -174 dBc/Hz @ 10 kHz
  • Low distortion: -45 dBc
  • High output: +16 dBm
Clear
Price request Datasheet

The HPDA-100RM is a high performance distribution and isolation amplifier that may contain up to three distribution amplifier modules. Each module provides five unity gain outputs and 100 dB of channel-to-channel isolation, and 110 dB of reverse isolation. The phase noise of the modules is exceptionally low, typically –158 dBc/Hz @ 10 Hz and -174 dBc/Hz @ 10 kHz from the carrier.

All the outputs are AC-coupled and the grounds are DC-isolated to reduce the effects of ground loops. The input and outputs have a low VSWR to minimize environmental effects on frequency distribution through long transmission lines.

HPDA-100i - 1 inputs and 5 Outputs, DC operation

Option I

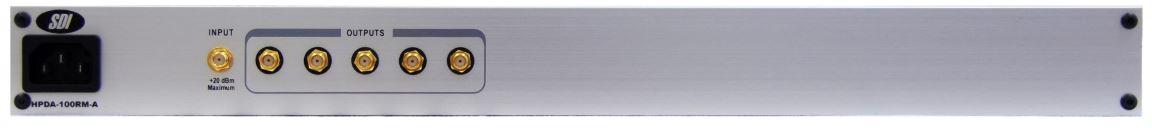

HPDA-100RM-A - 1 inputs and 5 Outputs, AC operation

Option A

HPDA-100RM-B - 3 inputs and 15 Outputs, AC operation

Option B

HPDA-100RM-B1 - 1 inputs and 10 Outputs, AC operation

Option B1

HPDA-100RM-B2 - 2 inputs and 10 Outputs, AC operation

Option B2

HPDA-100RM-C - 3 inputs and 15 Outputs, AC and DC operation

Option C

HPDA-100RM-D - 3 inputs and 15 Outputs, DC operation

Option D
