IFC_1210 - IFC_1210  Intelligent FPGA Controller

Main features

  • VME64x 6U Single Board Computer
  • Freescale PowerPC P2020 at 1.2 GHz
  • Up to 2 GBytes DDR3 System Memory
  • Dual 10/100/1000 BaseT Ethernet
  • High performance PCI Express GEN2 Switch
    • Multicast support
    • Multiple NTB Ports
    • SSC / CFC clocking mode
  • UHM P0 Extension (PCI Express GEN2 / User protocol)
  • One Dual PMC IEEE 1386.1 / XMC VITA 42.3 slot
  • One XMC VITA 42.3 slot
  • Two FMC VITA 57.1-2010 High Pin Count (HPC) slot
  • Transparent VME64x Master / Slave with 2eSST support
  • User Xilinx Virtex-6T FPGA (LX130T, LX195T, LX240T, LX365T, SX315T, SX475T)
  • TOSCA II FPGA Design Kit
  • API & Libraries available for Linux and VxWorks
Price request Datasheet

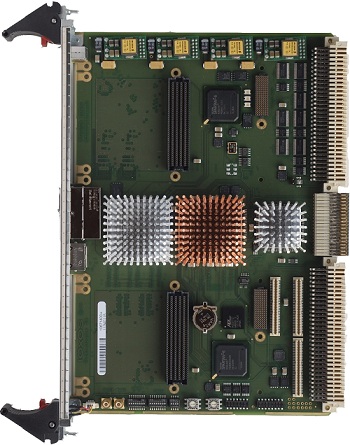

  • The IFC_1210 is a 6U VME64X highly configurable Single Board Computer with embedded FPGA capability and VITA 42.3 XMC, PMC, VITA57 FMC slots. The IFC_1210 is built around a high performance switched PCI Express GEN2 architecture providing low latency and high bandwidth extension capability.

  • The IFC_1210 is a general purpose high-capacity FPGA platform associated with a high-performance dual core PowerPC. It is well adapted for complex real-time applications and sophisticated data acquisition.

  • The IFC_1210 integrates the latest generation of Freescale PowerPC QorIQ processors. The P2020 provides dual-core capability running at 1.2 GHz with low power operation (< 8[W] Typ.). It is implemented with large DDR3 System Memory (up to 2 GBytes), non volatile memory NOR, NAND and multiple IO capabilities as dual Gigabit Base-T Ethernet .

  • The on-board Xilinx Virtex-6T FPGA implements a high performance PCI Express centric Network on Chip (NoC) switched interconnection. This NoC architecture provides a non-blocking, controlled low-latency and highthroughput bandwidth interface between the data producer and consumer.
