IFC_1420 - MTCA.4 High performance digitizer and generator

Main features

  • MTCA.4 mid-size double-width AMC form factor
  • NXP QorIQ T2081 CPU @ 1.8 GHz
    • Four dual-threaded e6500 computing cores
    • On-board 2 GB DDR3L-1866 SDRAM
    • High-speed peripheral interfaces supporting PCI Express Gen3 and 10 Gbps Ethernet
    • Altivec technology-based SIMD engine
    • Non-volatile boot media: NOR and SPI flash
    • Non-volatile storage memory: 4 Gbit NAND flash
  • Xilinx Kintex UltraScale Central FPGA:
    • High end Xilinx Kintex UltraScale KU040 (default) or KU060 FPGA
    • 1024 MB dual channel DDR3L-1066 SDRAM
    • Local (SPI flash) and remote (Ethernet) configuration support
    • Up to three embedded PCI Express blocks configurable as End Point or Root Complex
    • Powered by TOSCA III FPGA Design Kit for straight-forward FMC integration and customization
  • Customizable onboard DAQ function:
    • 10 channels ADC 16-bit @ 250 Msps
    • 4 channels DAC 16-bit @ 2.5 Gsps
  • Dual HPC VITA 57.1 compliant FMC slots
  • Ultra low jitter clock inputs on front panel, AMC and RTM interfaces
  • MTCA.4 D1.4-compliant RTM interface
  • Total integration within EPICS ecosystem
Price request Datasheet Ask a question

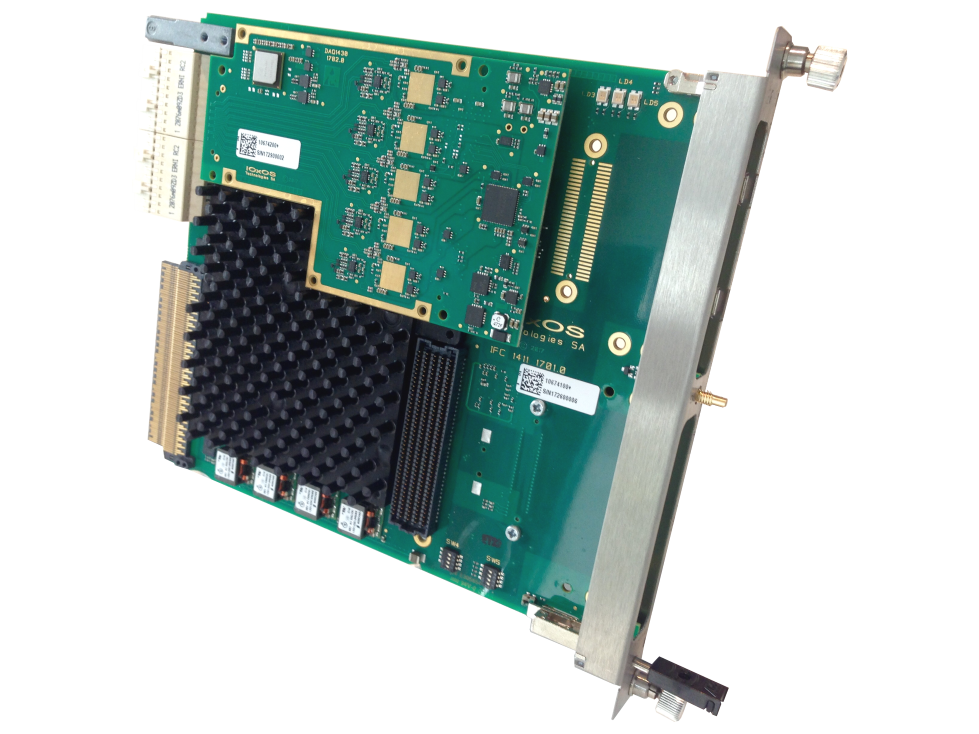

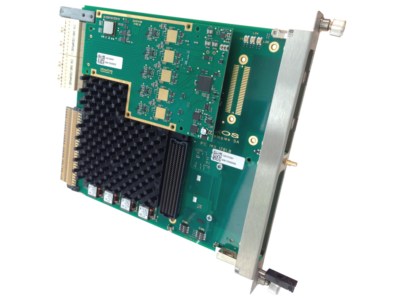

The IFC_1420 Intelligent FMC Carrier is a mid-size (4HP) double-width MTCA.4-compliant AMC unit featuring two HPC VITA57.1-compliant FMC slots. The two FMC slots are controlled by a Xilinx Kintex UltraScale FPGA device, connected to the AMC interface through one PCIe x4 Gen3 link (ports 4 to 7), point-to-point LVDS links (ports 12 to 15) and multi-point M-LVDS links (ports 17 to 20), to a NXP QorIQ T-series T2081 processor with a PCIe x4 Gen 3 link, and to the RTM interface through up to three GTP x4 links.

The processor is connected by one 1000-BASE-KX Gigabit Ethernet link to the AMC interface (port 0), and 1000-BASE-KX Gigabit Ethernet link (and two 10 Gigabit Ethernet links) to the ADF Rear Transition Module (RTM) interface.
This versatile AMC unit can also be used as a standalone CPU module.

The on-board data acquisition function implemented by the DAQ_1430 mezzanine is handled by the Central FPGA as a standard FMC slot and provides the following resources:

  • 10 channel ADC, AC or DC coupled (static selection), 16-bit @ 250 Msps based on Texas Instruments ADS42LB69
  • 4 channel DAC, current mode, 16-bit @ 2.5 Gsps implemented with Texas Instruments DAC38J84 device Ultra-low noise clocking architecture with on-board dual-PLL VCXO and external clock input
IFC_1420-A0 - MTCA.4 NXP T2081 High-Performance Digitizer AMC with Xilinx Kintex UltraScale XCKU040

ADC & DAC
TOSCAIII_FDK-SP - TOSCA III FPGA Design Kit – Starter Package (10 licenses + 3-days hands on workshop)

Carrier
TOSCAIII_FDK-DP - TOSCA III FPGA Design Kit – Development Package (10 additional licenses)

Carrier
IFC_1420 MTCA.4 High performance digitizer and generator
IFC_1420-A0 MTCA.4 NXP T2081 High-Performance Digitizer AMC with Xilinx Kintex UltraScale XCKU040
TOSCAIII_FDK-SP. TOSCA III FPGA Design Kit – Starter Package (10 licenses + 3-days hands on workshop)
TOSCAIII_FDK-DP. TOSCA III FPGA Design Kit – Development Package (10 additional licenses)
