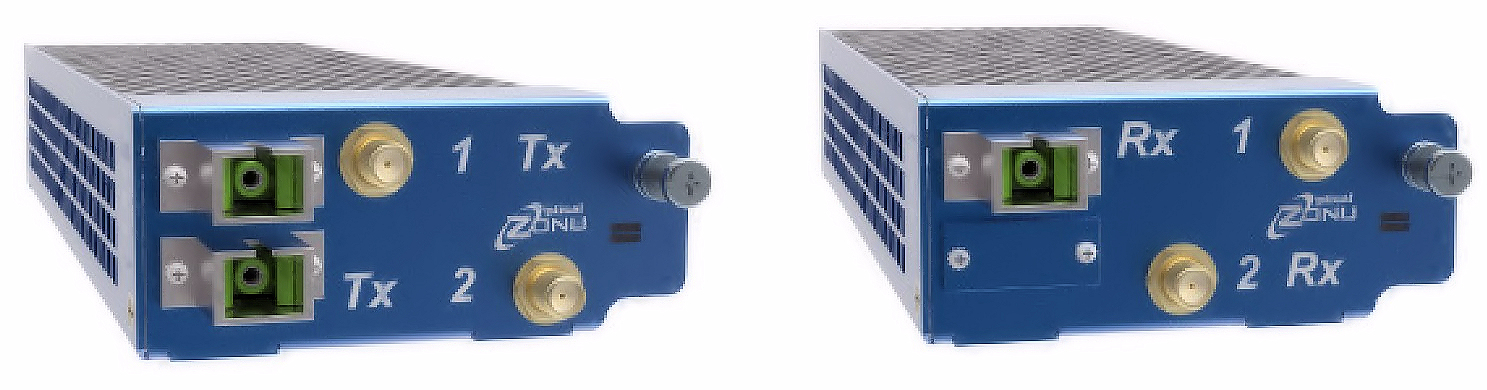

J400 - RFoF Modular Subsystem

Main features

  • 30 MHz to 6 GHz Bandwidth
  • Contains 1 pair of OZ510 TRx
  • Up to 2 individual Tx or Rx
  • Front & Rear Panel Alarm LED Indicator
  • -0°C to +60°C Operating Case Temperature
  • MTTF exceeds 10 years at +50°C
  • Laser Conforms to Class 1 Emission Level per CDRH and IEC-825 (EN60825) Standards
    Options:
  • Extended Bandwidth of 10 KHz to 6 GHz
  • CWDM Lasers
  • Multimode Fiber Compatibility
Price request Datasheet Ask a question

The J400 Series main RF over Fiber module building blocks are based upon the OZ51X products, and may be populated with 1 pair of these transceivers or up to 2 individual transmitters and/or receivers.

Each of these RFoF links is capable of carrying an individual RF signal over single mode (SMF-28) fiber optic cable (mutimode fiber cable is optional)

The J400 Remote Slot can be powered by DC 12 V power supplies. Complex alarm functions are available via micro USB connector and front panel LED indicators providing visual indication of link status.
