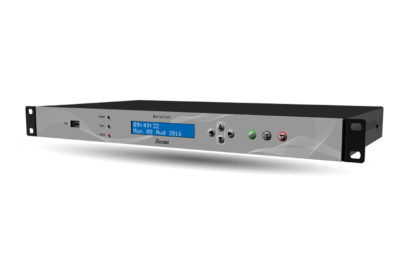

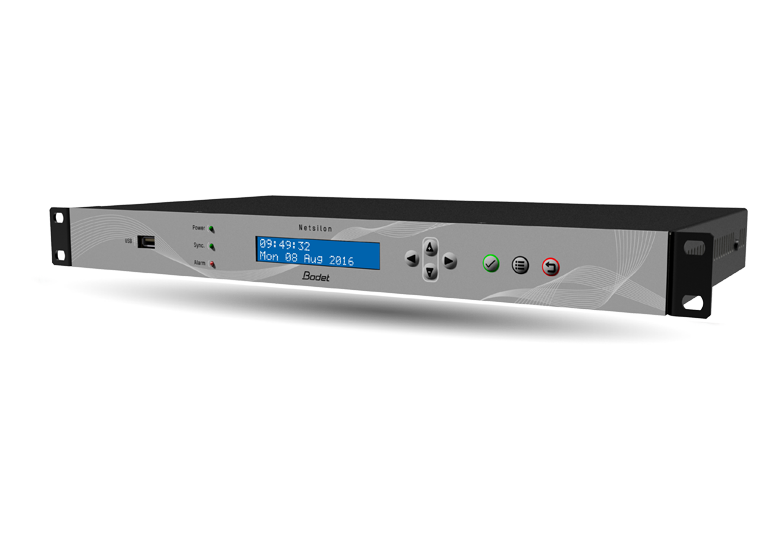

Netsilon 7 - GPS network time server

Main features

  • Accuracy (average after 24 hours with GPS signal) –  1×10-9
  • Stability (average after 2 weeks with GPS signal) – 1×10-7/day
  • Input  – 1x GPS
  • Outputs – 1x Ethernet, 4 slots for expansion cards
  • Holdover (after 2-week GPS synchronization at constant temperature) – 5 ms (after 24 hours)
  • Alarm -SNMP traps, email and relay contact
Clear
Price request Datasheet

Compact and modular, the Netsilon time server combines the accuracy of a master clock with the secure approach of data networks. The high-precision internal clock regulated is by its TCXO quartz.

Some highlight features are:

  • Priority order for the different synchronization references (input)
  • Modular design allowing a wide variety of input/output signals (up to 4 expansion cards)
  • Network security management: Enable/disable encryption, authentication, and access protocols.
  • Alarm information available as SNMP traps and email.
907901 - Netsilon 7 (18-36 VDC)

Netsilon 7

907902 - Netsilon 7 (100-240 VAC + 18-36 VDC)

Netsilon 7

907920 - Netsilon 2-port RJ45 NETWORK Card

Netsilon 7

907940 - Netsilon 2-outputs AFNOR Card

Netsilon 7

907942 - Netsilon 1-output Pulse Card

Netsilon 7

907944 - Netsilon 1 input + 1 output Current Loop Card

Netsilon 7

907921 - Netsilon 2-port SFP Optical fiber NETWORK Card

Netsilon 7

90790GPS network time server
907901Netsilon 7 (18-36 VDC)
907902Netsilon 7 (100-240 VAC + 18-36 VDC)
907920Netsilon 2-port RJ45 NETWORK Card
907940Netsilon 2-outputs AFNOR Card
907942Netsilon 1-output Pulse Card
907944Netsilon 1 input + 1 output Current Loop Card
907921Netsilon 2-port SFP Optical fiber NETWORK Card
