PA-100 - High gain power amplifier

Main features

  • Frequency range: 10 MHz to 200 MHz
  • High output power: +34 dBm
  • Low VSWR: < 1.5
  • High gain: +22 dB
  • Low distortion: < -35 dBc @ +30 dBm output
Price request Datasheet

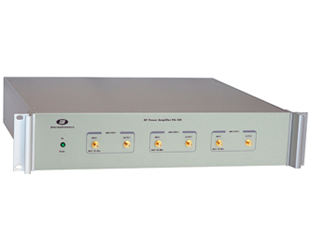

The PA-100 is a high gain power amplifier in a 2U rack–mount enclosure. The instrument contains three RF power amplifiers with 10 MHz to 200 MHz bandwidth. The amplifiers have +22 dB of gain and a 1 dB compression point of +34 dBm.

PA-100High gain power amplifier
