PCIe-24DSI32 - 32-Channel 24-Bit Delta-Sigma PCIe Analog Input Board

Main features

  • 32 Differential 24-Bit Analog Input Channels
  • Delta-Sigma Converter per Channel, with Linear Phase Digital Anti-alias Filtering
  • Sample rates from 2 KSPS to 200 KSPS per Channel
  • Software-Selectable Input Ranges: ±2.5V, ±5V, ±10V
  • 256 K-sample FIFO Buffer
  • Synchronous Operation; All Channels Clocked Simultaneously
  • Internal Sample Rate Generator
  • Hardware Sync and Clock I/O for Multi-board Synchronization
  • Low Phase Skew; Typically Less than 0.1-Degree with Fsig < 0.35*Fsamp
  • DMA Engine Supports both Block-Mode and Demand-Mode Transfers
  • Low Power  Consumption. 20 Watts Typical. Only +3.3VDC Required from PCIe bus
  • 100dB Dynamic Range; 93 dB SINAD
Price request Datasheet Ask a question

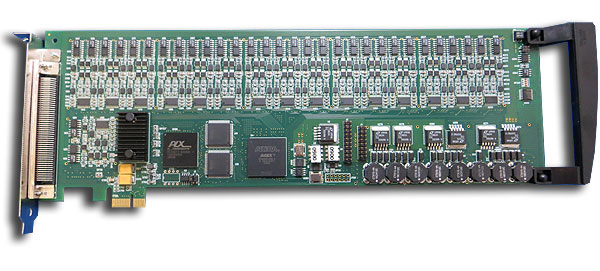

Low noise, 24-bit resolution, low phase distortion and multi-board synchronization make the PCIe-24DSI32 board ideal for state-of-the-art sonar and noise monitoring applications. The 32-channel PCIe-24DSI32 analog input board provides a high-density 24-bit analog input resources on a standard PCIe expansion board.

Optimized for flexibility and performance, the board is ideal for a wide variety of applications, ranging from simple precision voltage measurements, to the analysis of complex audio signals and wave-forms. Each of the 32 delta-sigma analog input channels can be can be harmonically locked together. A/D conversions on multiple boards can be synchronized and phase-locked. Input bandwidth is from DC to 80kHz.

Sample rates are adjustable from 2KSPS to 200KSPS, and the input range is software selectable as ±2.5V, ±5V or ±10V. Internal auto-calibration networks permit periodic calibration to be performed without removing the board from the system.

PCIe-24DSI32 32-Channel 24-Bit Delta-Sigma PCIe Analog Input Board
