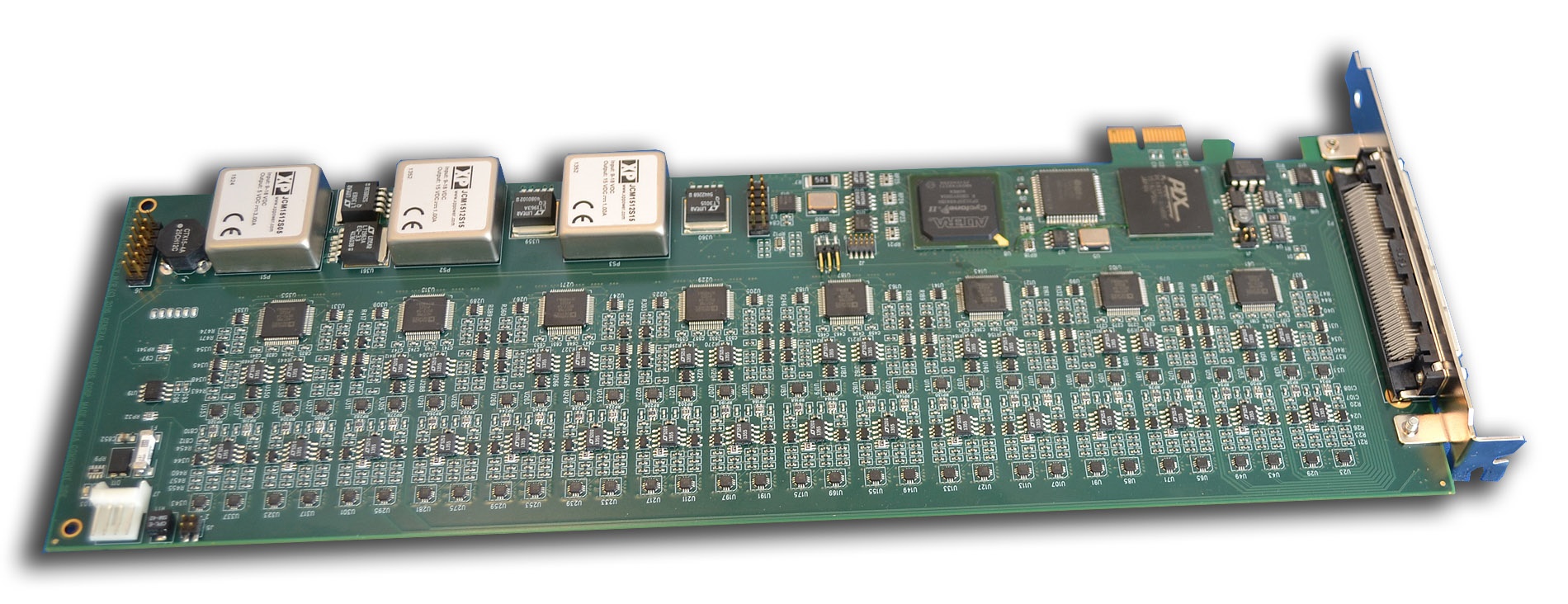

PCIe-24DSI64C200K - 64-Channel 24-Bit Delta-Sigma PCI Analog Input Board

Main features

  • 64 differential 24-Bit simultaneously-sampled analog input channels. Optional 48 and 32-channel versions also available.
  • Input sample rates from 1KSPS to 200KSPS per channel.
  • Fixed input range available from 2Vpp (±1V) to 5Vpp (±2.5V). Call for availability of a specific range.
  • Delta-Sigma input conversion minimizes or eliminates the need for antialias filtering.
  • Precision DC characteristics as well as wide dynamic range AC performance.
  • 256K-sample analog input FIFO buffer.
  • Typical dynamic range of 102dB; 120dB with 10kHz software postfilter.
  • Continuous and Burst (one-shot) sampling modes.
  • Sample clock source selected as internal or external.
  • Supports multiboard synchronization of analog inputs.
  • On-demand internal offset and gain autocalibration of all analog inputs.
  • 4-Bit bi-directional digital TTL port.
  • High-density Front-Panel system I/O connections.
  • PCI Express control interface, single-lane.



Price request Datasheet Ask a question

The 64-channel PCIe-24DSI64C200K analog input module provides high-density 24-bit analog input resources on a standard PCI Express module. Optimized for flexibility and performance, the board is ideal for a wide variety of applications, ranging from precision voltage measurements, to the analysis of complex acoustic signals and waveforms.

Each of 64 analog input channels contains a delta-sigma A/D converter that provides inherent antialias suppression and sharp-cutoff digital lowpass filtering. The digital filter can be software-configured either as a fast low-latency filter, or as a wideband low-ripple sharp-cutoff filter for maximum antialiasing.
An internal voltage reference can be applied through all channels to support selftest operations and autocalibration. Gain and offset trimming is performed by applying correction values that are determined during on-demand autocalibration. A linear-phase digital antialiasing filter rejects out-of-band signals, and a simple lowpass analog filter reject those interference signals that fall within the harmonic images of the digital filter.

ADC clocking is obtained either from an external hardware source, or from an internal sample-rate generator. The internal generator is adjustable over a 2:1 frequency range, and is divided down within the local controller to provide sample rates from 1.0 KSPS to 250 KSPS. Conversion data is transferred to the PCI Express bus through a 256 K-sample data buffer that is supported by two DMA channels. Multiple boards can be synchronized to perform simultaneous sampling with external sync and clock connections. Burst acquisition is supported.
