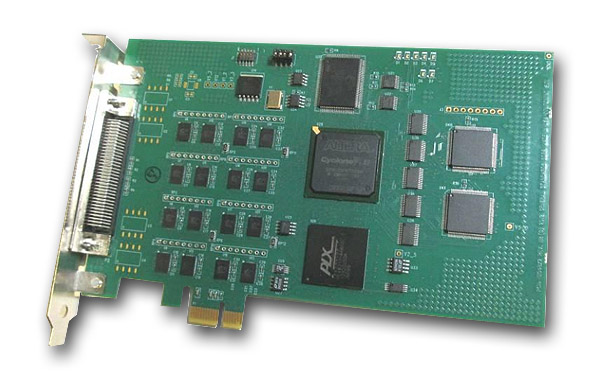

PCIe-DIO32A-S - 32 Port Digital I/O PCIe Card with RS422/RS485 Transceivers

Main features

  • One Lane PCI Express (PCIe) Interface
  • RS422/RS485 Differential Transceivers
  • 32 IO Bits individually configurable as Inputs or Outputs
  • Outputs can be individually tri-stated
  • Inputs can be programmed to trigger an interrupt on Change of State (H-L and L-H)
  • Interrupts can be individually programmed to trigger an output change on any or all Outputs
  • SCSI type 68 pin front edge I/O Connector
  • Breakout Board available
  • User changeable Termination Resistors (120 Ohm installed) – blocks of four signals (SIPS)
  • Available drivers include VxWorks, Windows, Linux, and Labview
  • Industrial Temperature Option Available
Price request Datasheet Ask a question

The PCIe-DIO32A-S is digital IO card which provides 32 general purpose IO signals for RS422/RS485
applications.

PCIe-DIO32A-S 32 Port Digital I/O PCIe Card with RS422/RS485 Transceivers
