PCIe-SIO4BX2-SYNC - High-performance Multi-Protocol Serial I/O PCIe Board

Main features

  • One lane PCI Express Interface
  • Four Independent Multi-Protocol Serial Channels
  • Independent Transmit and Receive FIFOs for each channel -Up to 32Kbyte each
  • Multi protocol Transceivers support RS422/RS485, RS232
  • Programmable Oscillators provide flexibility for Baud Rate Clock generation
  • Programmable Transmit Bit Counts allow for various transmit word lengths
  • Programmable Transmit Gap Bit Counts allow for variable gap between words
  • Fully Programmable Polarity on all signals
  • SCSI type 68 pin front edge I/O Connector
  • Eight signals per channel, configurable as DTE or DCE:
    3 Serial Clocks (TxC, RxC, AuxC) , 2 Serial Data signals (TxD, RxD), CTS, RTS, DCD
  • Unused signals may be reconfigured as General Purpose IO
  • Fast RS422/RS485 Differential Cable Transceivers Provide Data Rates up to 10Mbps
  • RS232 Cable Transceivers Provide Data Rates up to 250kbps
  • Standard Cable to four DB25 connectors and Custom Cables available
Price request Datasheet Ask a question

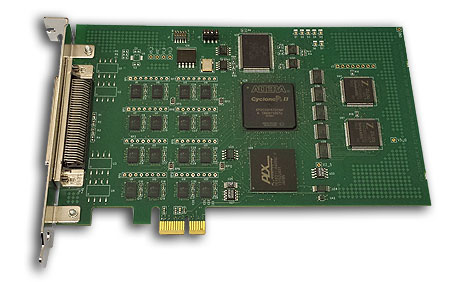

The PCIe-SI04BX2-SYNC is four channel synchronous serial interface card which provides high speed, full-duplex, multi-protocol serial channels for PCIe applications. The PCIe-SIO4BX2-SYNC combines a flexible serial interface, deep external FIFOs, and software selectable multi-protocol transceivers to provide four fully independent synchronous serial channels.

These features, along with a high performance one lane PCIe interface engine, give the PCIe-SIO4BX2-SYNC unsurpassed performance in a synchronous serial interface card.

PCIE-SIO4BX2-SYNC High-performance Multi-Protocol Serial I/O PCIe Board
