PCIe4-SIO8BX2-SYNC - 8-channel High-performance Synchronous I/O PCIe X4 Board

Main features

  • Four Lane PCI Express (PCIe4) Interface
  • Eight Independent Multi-Protocol Synchronous Serial Channels
  • Independent Transmit and Receive FIFOs for each Serial Channel –32Kbyte each
  • Fast RS422/RS485 Differential Cable Transceiver Provide Data Rates up to 10Mbps
  • RS232 Cable Transceivers Provide Data Rates up to 250kbps
  • Two Signal (Clock/Data) or Three Signal modes (Clock/Data/Data Valid)
  • Programmable Oscillators provide increased flexibility for Baud Rate Clock generation
  • Programmable Transmit Bit Counts allow for various transmit word lengths
  • Programmable Transmit Gap Bit Counts allow for variable gap between words
  • Fully Programmable Polarity on all signals
  • Low Force Helix (LFH) type 160 pin front edge I/O Connector
  • Eight signals per channel, configurable as either DTE or DCE:
  • 3 Serial Clocks (TxC,RxC,AuxC) , 2 Serial Data signals (TxD,RxD) , CTS, RTS, DCD
  • Unused signals may be reconfigured as General Purpose IO
  • Standard Cable to eight DB25 connectors and Custom Cables available
  • Interchangeable 120Ω Termination Resistors (RS422/RS485 Mode)
Price request Datasheet

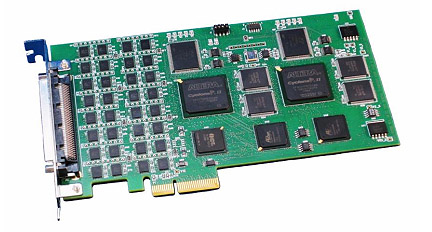

The PCIe4-SIO8BX2-SYNC is an eight channel serial synchronous interface card which provides high speed, full-duplex, multi-protocol serial capability for PCIe applications. The PCIe4-SIO8BX2-SYNC combines a flexible serial interface, deep external FIFOs, and software selectable multi-protocol transceivers to provide eight fully independent serial channels. These features, along with a high performance four lane PCIe interface engine, give the PCIe4-SIO8BX2-SYNC unsurpassed performance in a serial interface card.
