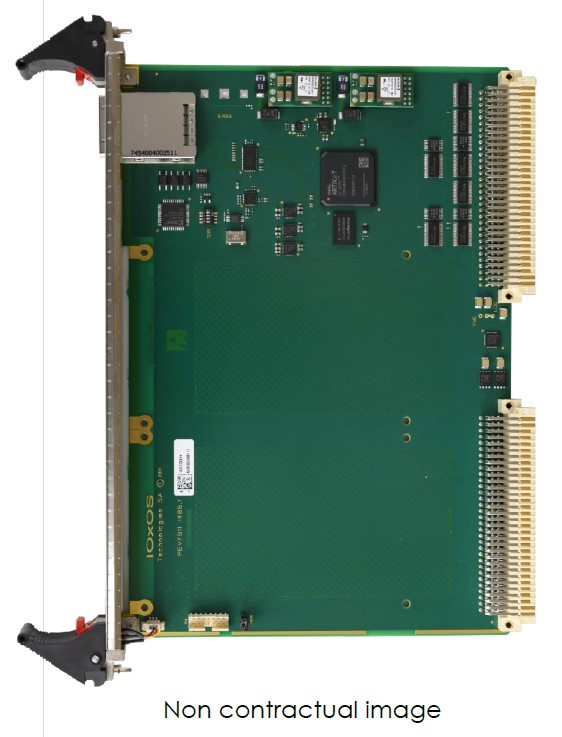

PEV7913 - PCI Express to VME64x Transparent Interface, optical fiber

Main features

  • 6U VME64x PCI Express to VME transparent bridge for optical connection
  • Based on FireFly™ PCIe x4-Over-Fiber optical cable system
  • Supports optical cable lengths up to 100 meters
  • ALTHEA 7910 FPGA based PCI Express to VME64x transparent bridge:
      • Implemented in Xilinx Artix-7 device
      • VME64x Master/Slave interface with Slot-1 functions
      • True PCI Express End Point x4 GEN1/GEN2
      • Supports VME Data D08, D16, D32, BLT32, MBLT64, 2eVME, 2eSST and 2eSST Broadcast
      • High-performance DMA
  • 256 MBytes DDR3 Shared Memory
  • Low latency PCI Express x4 Fast Path Thermal and Power supplies monitoring
  • Linux, VxWorks® 7 and Microsoft® Windows 10, Software Suite ALTHEA 7910
Price request Datasheet Ask a question

The PEV_7913, its second generation of 6U VME64x PCI Express to VME bridge boards based on FireFly™ PCIe x4-
Over-Fiber optical cable system to enable long distance high bandwidth connections up to 100 meters. This solution targets high performance computing, I/O control and test applications in Mil/Aero, Transport and High Energy Physics (HEP) fields.
The PEV_7913 aims to enhance existing VME64 data acquisition, control and test systems by removing the computing node from the crate and preserving most of the valuable I/O modules. This approach, confirmed by its predecessor (PEV_1100) allows to adapt specific real time systems to work with widely available high-end multi-core servers running standard operating systems.
This solution minimizes the obsolescence risks inherent to expensive embedded processors driven by proprietary operating systems.
The PEV_7913 forms part of the new line of IOxOS Technologies VME64x products featuring its proprietary ALTHEA 7910 solution, a PCI Express to VME64x Bridge implemented in a Xilinx Artix-7 FPGA to deliver an extremely competitive COTS in terms of cost, performance and power consumption. This field proven solution natively supports all Master/Slave VME64x modes of operation with Slot_1 System Controller function, including VME64x data transport 2eVME and 2eSST modes with maximal burst length capability, while guaranteeing very long term availability of the board as a result of not depending on already obsolete third party VME interfaces.

PEV_7913-A0 - PCI Express to VME64x Bridge featuring FireFly PCIe x4-Over-Fiber optical cable system

VME Interface
PEA_3115-A0 - PCI Express x4 GEN1/GEN2 PC Host Adapter featuring FireFly PCIe x4-Over-Fiber optical cable system

VME Interface
FOPC-02-02-10-12 - Optical fiber, 10 meters

VME Interface
FOPC-02-02-100-12 - Optical fiber, 100 meters

VME Interface
PEV7913 PCI Express to VME64x Transparent Interface, optical fiber
PEV_7913-A0 PCI Express to VME64x Bridge featuring FireFly PCIe x4-Over-Fiber optical cable system
PEA_3115-A0 PCI Express x4 GEN1/GEN2 PC Host Adapter featuring FireFly PCIe x4-Over-Fiber optical cable system
FOPC-02-02-10-12 Optical fiber, 10 meters
FOPC-02-02-100-12 Optical fiber, 100 meters
