PMC66-16AO16 - 16-Channel 16-Bit Diff Analog Output PMC Board

Main features

  • 16 Precision 3-Wire Balanced Differential High-Speed Analog Output Channels
  • 16-Bit Resolution; D/A Converter per Channel
  • 66MHz PCI Bus Support
  • Data Rates to 440K Samples per Second per Channel; 7.04 MSPS Aggregate Rate
  • Software-Selectable Output Ranges of ±10V, ±5V, ±2.5V or ±1.25V
  • Optional 2-Wire Single-Ended Analog Outputs
  • 256K-Sample Output Data FIFO Buffer; Configurable as Open or Circular
  • Simultaneous or Sequential Output Clocking
  • Multiboard Synchronization Supported
  • Continuous and Burst (One-Shot) Output Modes Support Seamless Waveform Sequencing
  • Data Rate Controlled Internally or Externally, Real-Time Rate Adjustment Supported
  • Software-Selectable Differential Clock I/O for Synchronizing Sigma-Delta A/D Boards
  • High Accuracy Ensured by On-Demand Autocalibration of all Channels
  • Remote Ground Sensing.

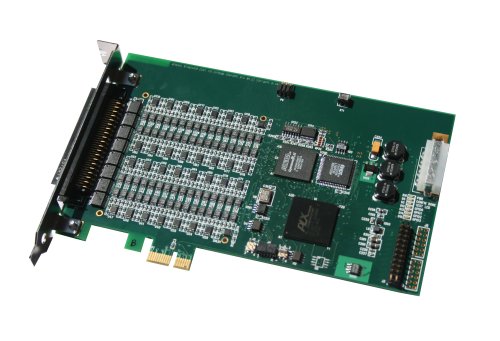

  • Exist in PCIe, PCI, PMC, PC104, cPCI/PXI
Price request Datasheet

The PMC66-16AO16 board contains sixteen 16-bit D/A converters (DAC’s), and all supporting functions necessary for adding precision high-speed differential or single-ended analog output capability to a PMC application. Output ranges are software-selectable as ±10 Volts, ±5 Volts or ±2.5 Volts. The board is functionally compatible with the IEEE PCI local bus specification Revision 2.3, and supports both 66MHz and 33MHz PCI bus speeds with universal signaling.

Unique FIFO buffer controls support the seamless sequencing of successive waveforms through a single buffer port. In less demanding applications, the outputs can be updated individually. Hardware clock I/O permits synchronization with a variety of products, including Sigma-Delta ADC boards.
