PS6000P - Phase Shifter 6GHz

Main features

  • Frequency Range: 3500 – 6000 MHz
  • Angle Range: 0 – 355 degrees
  • Power Input Range: < +25dBm
  • Phase Resolution: 5.625 degrees
  • Insertion Loss: 5-6dB
  • Return Loss: > 12dB typical
  • Bi-directional design
  • No minimum input power level
Price request Datasheet Ask a question

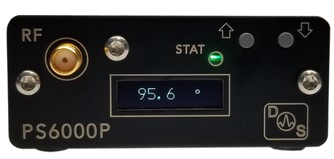

The PS6000P wideband RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments.

This ultra-compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS6000P is extremely attractive for many wideband applications.

PS6000P Phase Shifter 6GHz
