PXES-2301 - 6 All-Hybrid Slot 3U PXIe Chassis

Main features

  • Entry level platform provides an ideal balance between performance and price point
  • Compact half-rack for portable application in a wide variety of testing environments

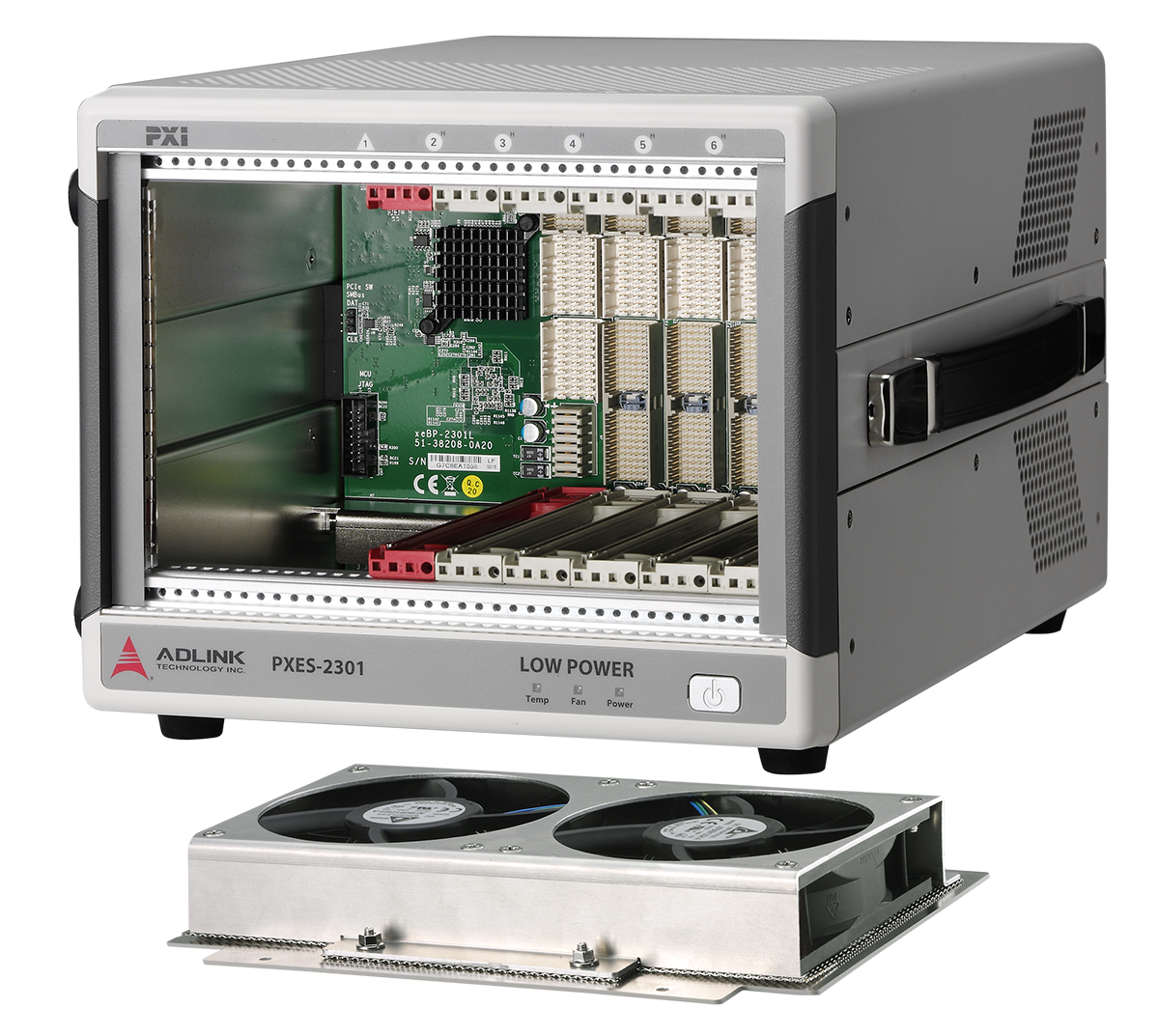

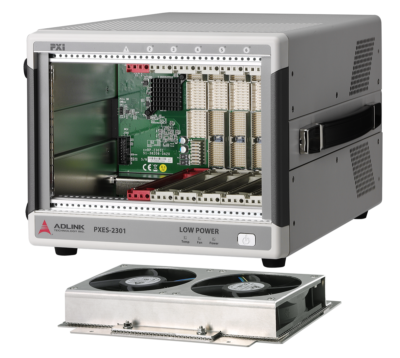

  • Replaceable modular cooling fan reduces maintenance requirements
  • High per-slot cooling capacity up to 38W
  • Intelligent chassis management with automatic fan speed control and temperature/power status monitoring
  • System bandwidth up to 8GB/S & peripheral bandwidth up to 2GB/s for all slots
  • Low fan noise 35.3 dBA at ambient 25 °C
Price request Datasheet

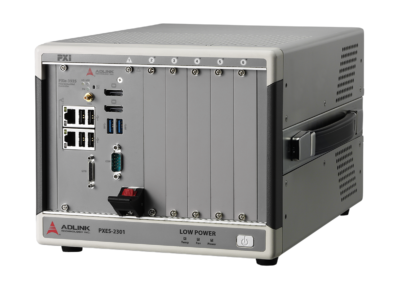

The ADLINK PXES-2301 compact 6-slot PXI Express chassis, compliant with PXI Express and cPCI Express specifications, provides one system slot with three expansion slots and five hybrid peripheral slots, supporting a wide variety of enhanced-bandwidth testing and measurement applications. The hybrid-slot design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules in any peripheral slot for maximum flexibility. Built on a four-link PXI Express chassis with 8GB/s system bandwidth, the PXES-2301’s peripheral slots are all connected with PCIe gen2 x4, with slot bandwidth up to 2GB/s. The PXES-2301 implements a smart system monitoring controller, reporting full chassis status including fan speed, system voltages, and internal temperature.

The compact, rugged, half-rack size with efficient construction uniquelty suits the PXES- 2301 for portable use with minimized space requirements. An industrial grade AC power supply delivers 320W performance under 50°C, with superior cooling capacity. All in all, the PXES-2301 is an ideal PXI Express platform choice for practically any testing and measurement operation.

PXES-23016 All-Hybrid Slot 3U PXIe Chassis
