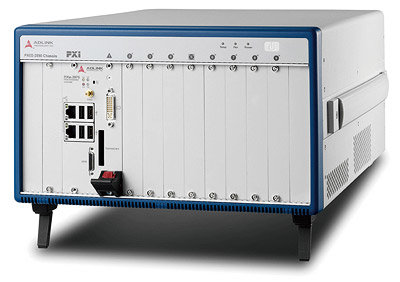

PXES-2590 - 9-Slot 3U PXI Express Chassis

Main features

  • PXI™-5 PXI Express hardware specification Rev.1.0 compliant
  • 9-slot PXI Express chassis with one system slot, one system timing slot, and seven hybrid peripheral slots
  • Four-link PXI Express chassis
  • Up to 7 GB/s system bandwidth & up to 2 GB/s peripheral bandwidth for all slots
  • 0°C to 55°C extended operating temperature range, maximum total usable power is 400 W under 55°C
  • Intelligent chassis management: Automatic fan speed control, Chassis status monitoring and reporting & Remote chassis power on/off control
  • BNC connectors for 10 MHz clock input/output
  • Power, temperature, and fan monitoring LEDs
Price request Datasheet

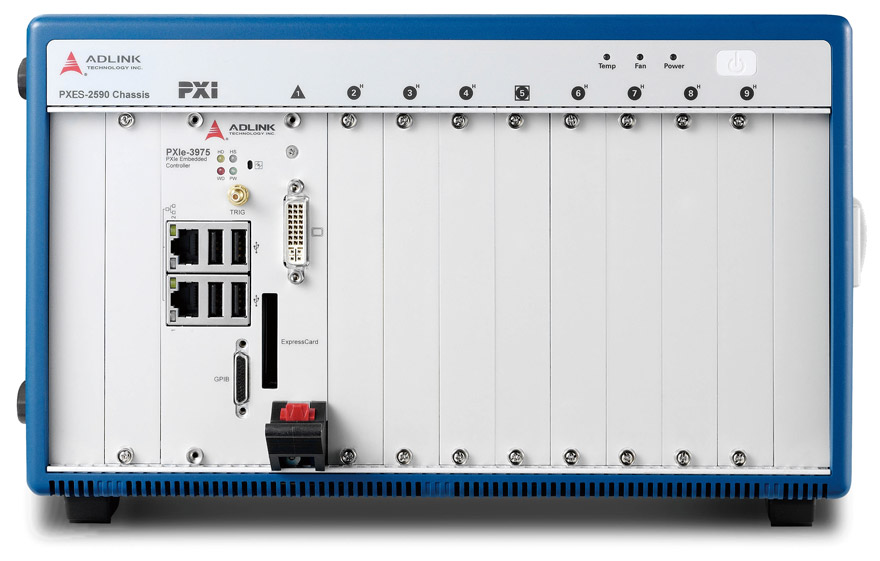

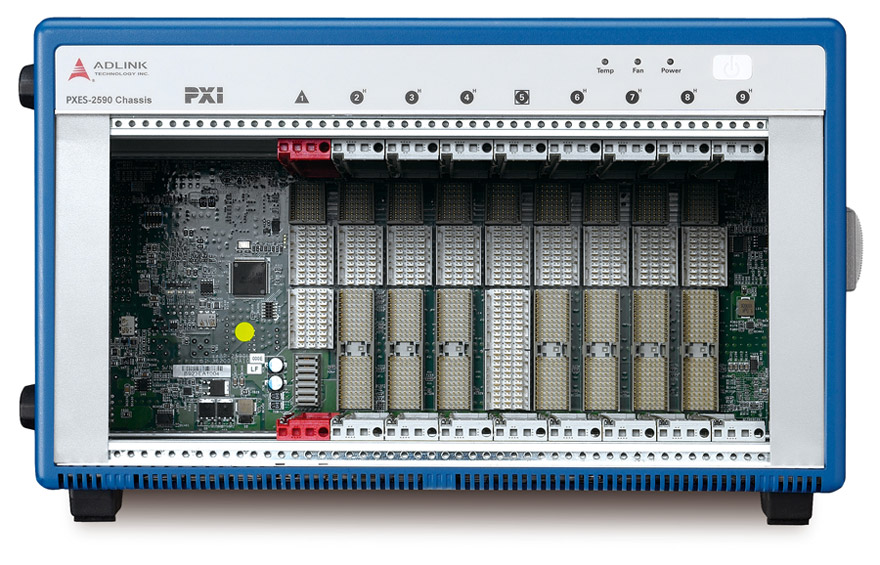

The ADLINK PXES-2590 is a 9-slot PXI Express chassis equipped with advanced features and functions. Compliant with PXI Express and cPCI Express specifications, the PXES-2590 offers one system slot, one system timing slot, and seven hybrid peripheral slots for versatile test and measurement applications requiring enhanced bandwidth. The hybrid-slot design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules into any peripheral slots in PXES-2590, maximizing flexibility.

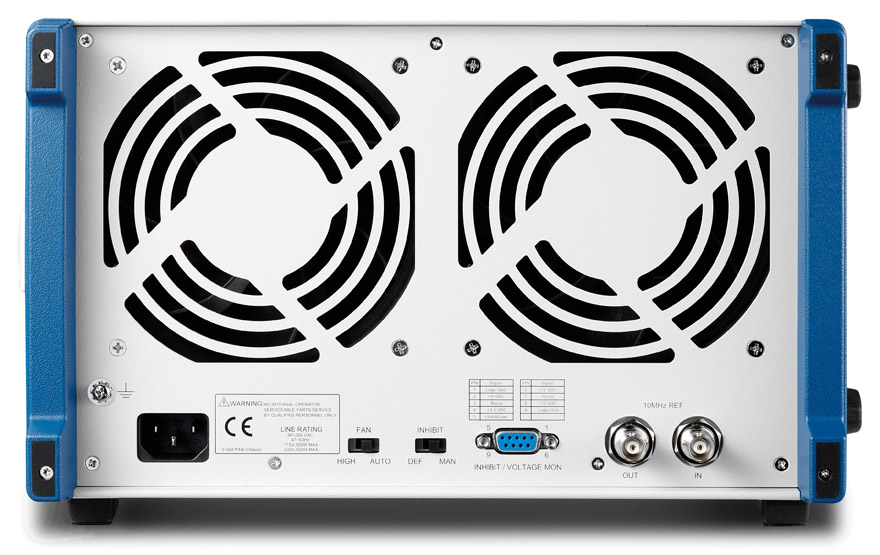

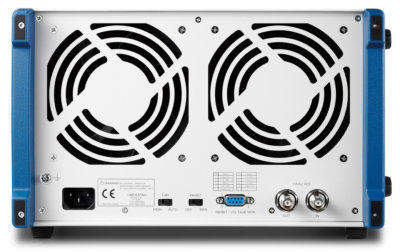

The PXES-2590 is built on a four-link PXI express chassis with 8 GB/s system bandwidth, and 1 GB/s slot bandwidth for all peripheral slots.The PXES-2590 is implemented with a smart system monitoring controller, reporting full chassis status, including fan speed, system voltages, and internal temperature. Equipped with an industrial grade AC power supply, the PXES-2590 still provides 400 W under 55°C, and delivers superior cooling capacity, from two 120 mm cooling fans on the rear of the chassis. Two BNC connectors for 10 MHz clock input/output on the rear panel increase chassis flexibility, enabling synchronization with supplementary devices. All in all, PXES-2590 is the best PXI Express platform choice for testing and measurement requirements.

PXES-25909-Slot 3U PXI Express Chassis
