RFS-4220T - 22 GHz RF Generator

Main features

Wide frequency coverage: 0.1 GHz to 20 GHz calibrated, settable to 22 GHz
High output power up to +15 dBm with fine power control
Low phase noise and excellent spectral purity for demanding RF applications
Precision frequency control with < 2 Hz frequency step size
Integrated touchscreen GUI for complete standalone control
Physical front-panel buttons and rotary knob for full non-touch operation
Seamless control compatibility between touchscreen, buttons, knob, and remote software
LAN or USB-based computer control with a matching graphical user interface
Automatic network device discovery from the computer application
Toggleable multi-session LAN or USB control for multiple computers on the same
instrument
Internal device storage for saved sweep-list configurations
Save and recall list sweep CSV files directly on the instrument
Upload sweep-list CSV files from an external computer
External 10 MHz reference input for synchronization with lab frequency standards
External trigger input for synchronized sweep and test operation
SCPI-based control over LAN or USB
DC-powered benchtop chassis design

The RFS-4220T is a high-performance 22 GHz RF and microwave signal generator with integrated touchscreen control, front-panel controls, LAN or USB control, internal sweep storage, and full remote software access. It combines microwave-class RF performance with a self-contained benchtop chassis designed for direct instrument operation without requiring an external computer.

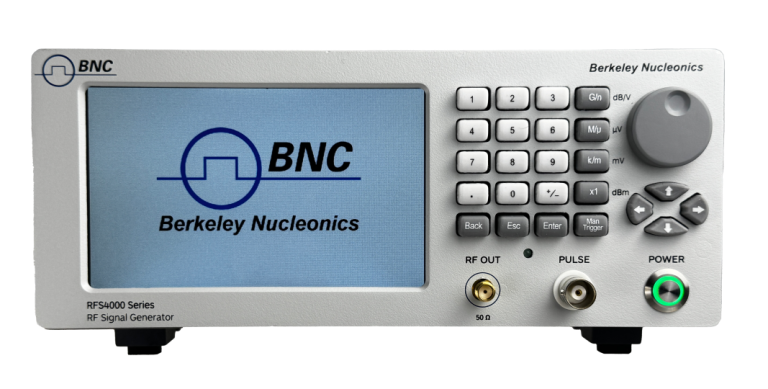

The RFS-4220T is housed in a benchtop chassis with an integrated touchscreen interface, physical buttons, and a rotary knob. Users can operate the full instrument directly from the touchscreen, from the front-panel controls, or remotely from an included computer application over LAN or USB. All control methods stay synchronized, so a change made from one interface is reflected across the others.

	- 50 kHz to 8 GHz , 1 Channel, Benchtop RF Signal Generato RF Generator
	- 50 kHz to 20 GHz , 1 Channel, Benchtop RF Signal Generato RF Generator
	- Modulation package (AM, FM, PM) RF Generator
	- Pulse Modulation RF Generator
	- Pattern Modulation RF Generator
	- Fast Switching to 100 µs RF Generator
	- Rack-mount kit (for 1 or 2 units) RF Generator

RFS-4220T	22 GHz RF Generator
RFS-4080	50 kHz to 8 GHz , 1 Channel, Benchtop RF Signal Generato
RFS-4200	50 kHz to 20 GHz , 1 Channel, Benchtop RF Signal Generato
RFS-Mod	Modulation package (AM, FM, PM)
RFS-Pulse	Pulse Modulation
RFS-Pat	Pattern Modulation
RFS-FS	Fast Switching to 100 µs
RFS-Rack	Rack-mount kit (for 1 or 2 units)
