RSWM-4X4ER - Extremely Wideband 4X4 Switching Matrix 20 à 8000 MHz

Main features

  • 20 MHz à 8000 MHz
  • Switching Matrix 4×4
  • Wideband
  • High dynamic
  • Non-blocking
  • Compact 19”, 1 U design
Price request Datasheet Ask a question

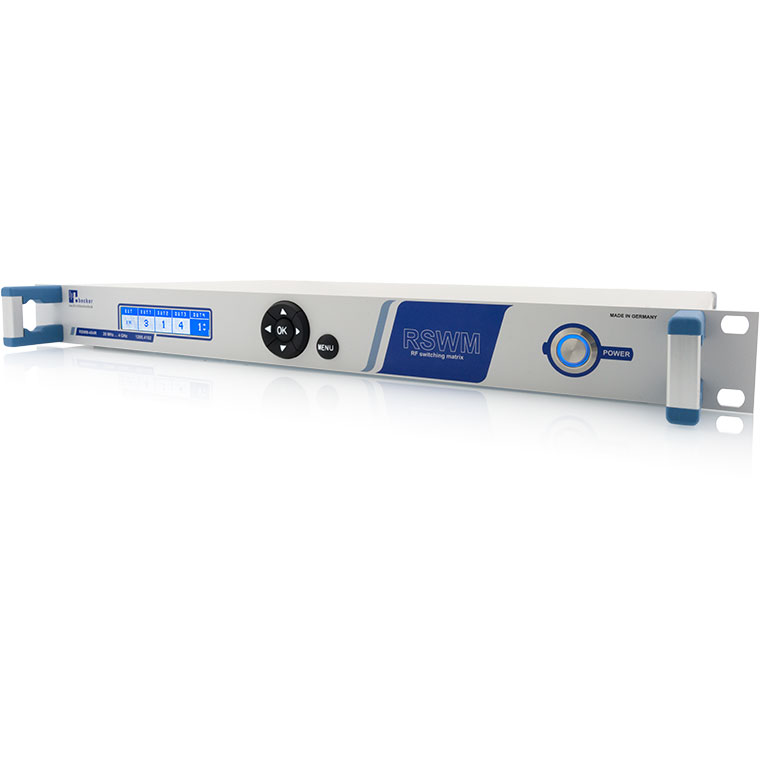

RSWM-4X4ER is an extremely wideband, non-blocking switching matrix suitable for the frequency range 20 MHz to 8000 MHz. This device features four inputs which can be connected arbitrarily to four outputs. RSWM-4X4ER can be controlled remotely via USB and LAN interface. Additionally, RSWM-4X4ER offers a MMI on the front panel for local control.

Using RSWM-4X4ER, four signal sources can be connected arbitrarily to four signal paths without any restriction. For this purpose, all the inputs and outputs are non-blocking. This way, various antenna signals can be switched to different receivers or multiple receivers can be switched to the same antenna.

The modern circuit design of RSWM-4X4ER offers excellent properties in terms of dynamics and isolation. This makes RSWM-4X4ER suited for demanding applications like receiving stations for example.

RSWM-4X4ER is controllable with SCPI-oriented ASCII commands via USB and LAN interface. The device can also be operated locally via MMI on the front panel.

Like many other products of Becker Nachrichtentechnik GmbH, this device offers a TRIGGER IO port. This interface provides a precise trigger pulse which complies with the physical execution of the applied switching command. On the other hand, external pulses can be applied to this port in order to trigger the execution of queued switching commands. Therefore it is possible to link multiple devices to a synchronous switching compound.

With RSWM-4X4ER, the customer gets a valuable and universally usable device. Being designed in a compact way in 3 U, RSWM-4X4ER can be placed in 19” racks or operated as a tabletop unit. The device is supplied by mains voltage.

In applications where multiple signal sources have to be switched to different signal paths, switching matrices are required. The excellent RF characteristics of RSWM-4X4ER make the device suitable for demanding applications such as receiving stations for example. RSWM-4X4ER is also used in research and development (R&D) or in systems for signal distribution.
