RSWM-4X4R - Non-blocking 4X4 Switching Matrix 100 kHz to 4000 MHz /20 MHz to 4000 MHz

Main features

  • 100 kHz to 4000 MHz or 20 MHz à 8000 MHz
  • Switching Matrix 4×4
  • Wideband
  • High dynamic
  • Non-blocking
  • Compact 19”, 1 U design
Price request Datasheet Ask a question

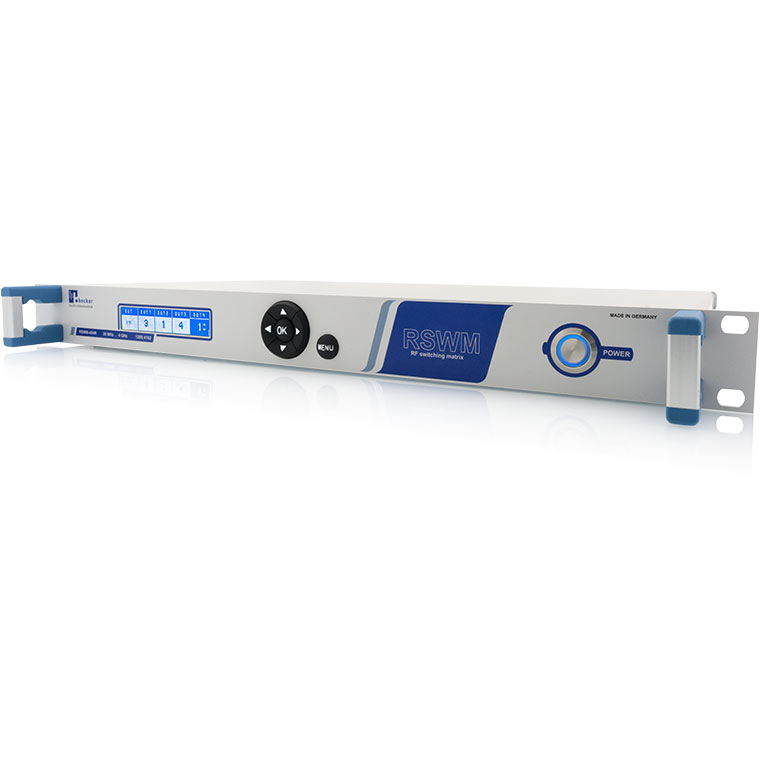

RSWM-4X4R is a non-blocking matrix with high bandwidth offering 4 inputs and 4 outputs in 50 ohms technology. The design of RSWM-4X4R is based on modern semiconductors. The RF switches are solid state and work wear-free. RSWM-4X4R has an energy save mode. Unused amplifier stages are powered down when not used. The control occurs via MMI on front panel or via LAN or USB remote interfaces with SCPI based commands. Additional a graphic user interface (GUI) offers an intuitive handling.

The low noise in combination with the high linearity properties of the device enables the use in professional applications. The matrix offers best channel decoupling.

RSWM-4X4R offers two switching modes:

• Direct execution of switch commands.
• Time synchronous switching with help of SYNC commands or a an external trigger signal.

Time synchronous switching can be done either per software with a SYNC command or alternative with an external trigger pulse.

Like many other products of Becker Nachrichtentechnik GmbH, the devices of the RSWM series offer a TRIGGER IO port. This interface provides a precise trigger pulse which complies with the physical execution of the applied switching command. On the other hand, external pulses can be applied to this port in order to trigger the execution of queued switching commands. Using this port, it is possible to link multiple devices to a synchronous switching compound.

The RSWM-4X4R is available in two variants:

20 MHz to 4000 MHz for V/UHF applications
For applications in the V/UHF frequency range the matrix is available in a frequency variant 20 MHz to 4000 MHz. This variant have high pass filters in each input to suppress unwanted signals coming from e.g. local radio stations in the LW, MW and short wave range.

100 kHz to 4000 MHz for broadcast applications
In applications like testing of infotainment components the variant 100 kHz to 4000 MHz offers the full transmission of signals from the VLF range up to the UHF frequency range. All typical broadcast signals like (AM, FM, DAB3, DVB-T, SDARS und GNSS) can be transmitted by the matrix.
