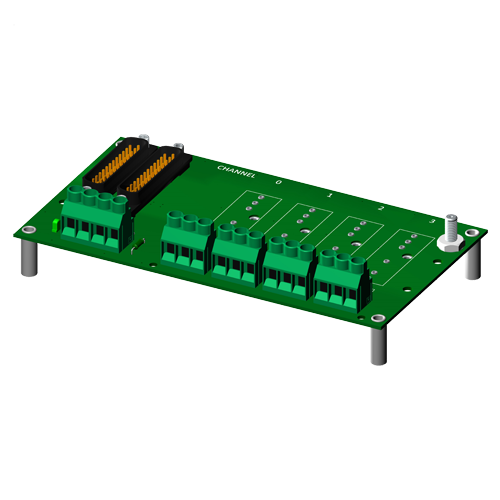

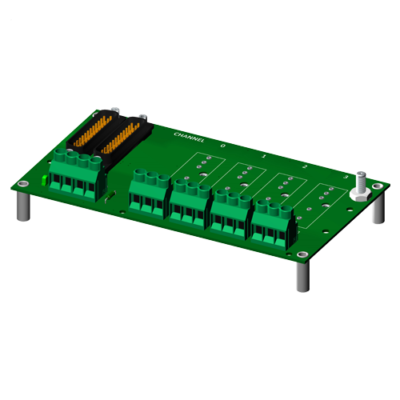

SCM7BP04 - Four channel backpanel with standoffs for mounting.

Main features

  • 4 Slots for 7B signal conditioners
  • Input Voltage Range 14V or 35VDC
Price request Datasheet Ask a question

The SCM7BP04 is a four slots backpanel and can accept any of the SCM7B analog modules.

SCM7BP04-DIN - Four channel backpanel with DIN rail mounting clips. SCM7BP04-DIN - Four channel backpanel with DIN rail mounting clips.

Backplane

SCM7BP04 Four channel backpanel with standoffs for mounting.
SCM7BP04-DIN Four channel backpanel with DIN rail mounting clips.
