SCM9B-15/25 - Strain Gage Sensor-to-Computer Modules

Main features

  • Strain Gage Inputs
  • Complete Sensor to RS-485 or RS-232C Interface
  • ASCII Format Command/Response Protocol
  • 500Vrms Analog Input Isolation
  • 15-Bit Measurement Resolution
  • Continuous Self-Calibration; No Adjustments of Any Kind
  • Programmable Digital Filter
  • Digital Limit Setting and Alarm Capability
  • Digital Inputs and Outputs
  • Connect to Solid State Relays
  • Events Counter to 10 Million
  • Requires +10V to +30VDC Unregulated Supply
  • Transient Suppression on RS-485 Communications Lines
  • Screw Terminal Plug Connectors Supplied
  • CE Compliant
Clear
Price request Datasheet

The SCM9B-1000/2000 Sensor-to-Computer Modules are a family of complete solutions designed for data acquisition systems based on personal computers and other processor-based equipment with standard serial I/O ports. The modules convert analog input signals to engineering units and transmit in ASCII format to any host with standard RS-485 or RS-232C ports. These modules can measure temperature, pressure, voltage, current and various types of digital signals. The modules provide direct connection to a wide variety of sensors and perform all signal conditioning, scaling, linearization and conversion to engineering units. Each module also provides digital I/O lines for controlling devices through solid state relays or TTL signals. These digital I/O lines along with built-in limit setting capability provide alarm and control outputs.

The modules contain no pots or switches to be set. Features such as address, data rate, parity, alarms, echo, etc. are selectable using simple commands over the communications port—without requiring access to the module. The selections are stored in nonvolatile EEPROM which maintains data even after power is removed.

The 2000 series is an enhanced version of the 1000 series of sensor interfaces. The 2000 series allows the user to scale the output data in any desired engineering units. The 2000 also provides the ability to program nonlinear transfer functions. This feature may be used to linearize nonstandard sensors or to provide outputs in engineering units which are nonlinear functions of the input.

Programmable Features (2000 Series)

  • Provides intelligent features not found in the 1000 series
  • ASCII Output Scaled to Desired Engineering Units
  • User Programmable Nonlinear Transfer Function
  • Straight-Line Segment Approximation: up to 24 Segments

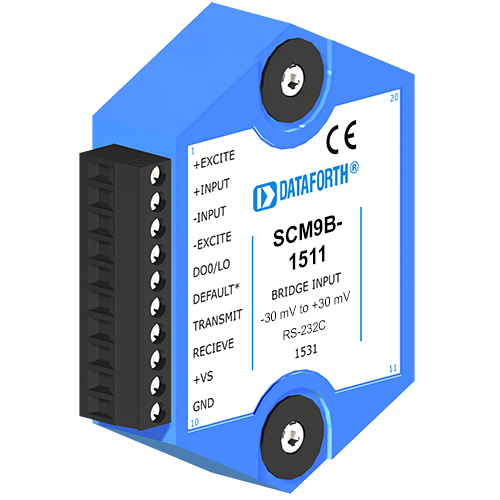

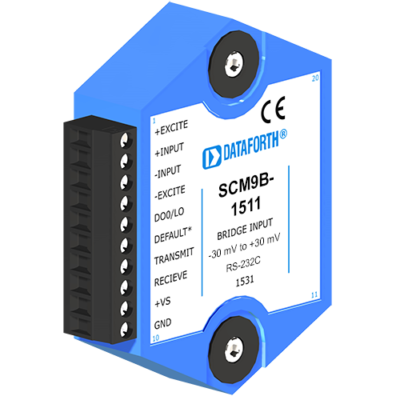

SCM9B-1511/2511 - Input range ± 30mV Bridge, 5V Excitation Output RS232C

9B

SCM9B-1512/2512 - Input range ± 30mV Bridge, 5V Excitation Output RS485

9B

SCM9B-1521/2521 - Input range ± 30mV Bridge, 10V Excitation Output RS232C

9B

SCM9B-1522/2522 - Input range ± 30mV Bridge, 10V Excitation Output RS485

9B

SCM9B-1531/2531 - Input range ± 100mV Bridge, 5V Excitation Output RS232C

9B

SCM9B-1532/2532 - Input range ± 100mV Bridge, 5V Excitation Output RS485

9B

SCM9B-1541/2541 - Input range ± 100mV Bridge, 10V Excitation Output RS232C

9B

SCM9B-1542/2542 - Input range ± 100mV Bridge, 10V Excitation Output RS485

9B

SCM9B-1551/2551 - Input range 1 - 6V Bridge, 8V Excitation Output RS232C

9B

SCM9B-1552/2552 - Input range 1 - 6V Bridge, 8V Excitation Output RS485

9B

SCM9B-1561/2561 - Input range 1 - 6V Bridge, 10V Excitation Output RS232C

9B

SCM9B-1562/2562 - Input range 1 - 6V Bridge, 10V Excitation Output RS485

9B

SCM9B-15/25Strain Gage Sensor-to-Computer Modules
SCM9B-1511/2511Input range ± 30mV Bridge, 5V Excitation Output RS232C
SCM9B-1512/2512Input range ± 30mV Bridge, 5V Excitation Output RS485
SCM9B-1521/2521Input range ± 30mV Bridge, 10V Excitation Output RS232C
SCM9B-1522/2522Input range ± 30mV Bridge, 10V Excitation Output RS485
SCM9B-1531/2531Input range ± 100mV Bridge, 5V Excitation Output RS232C
SCM9B-1532/2532Input range ± 100mV Bridge, 5V Excitation Output RS485
SCM9B-1541/2541Input range ± 100mV Bridge, 10V Excitation Output RS232C
SCM9B-1542/2542Input range ± 100mV Bridge, 10V Excitation Output RS485
SCM9B-1551/2551Input range 1 - 6V Bridge, 8V Excitation Output RS232C
SCM9B-1552/2552Input range 1 - 6V Bridge, 8V Excitation Output RS485
SCM9B-1561/2561Input range 1 - 6V Bridge, 10V Excitation Output RS232C
SCM9B-1562/2562Input range 1 - 6V Bridge, 10V Excitation Output RS485
