SIS3305 - 2/4/8 channel , 5/2.5/1.25 GS/s , 10-bit VME Digitizer

Main features

  • Single width 6U VME card
  • 2/4/8 channels
  • 5 GS/s/2.5 GS/s/1.25 GS/s per channel
  • 512/256/128 MSamples/channel memory
  • 2 GHz bandwidth # Internal/External clock
  • Readout in parallel to acquisition # Multi event mode
  • Pre/Post trigger capability
  • Trigger or output (4 individual thresholds)
  •  A32/D32/BLT32/MBLT64/2eVME/SST
  • 1/2/4 GBit/s optical link option
  • In field JTAG and VME firmware upgrade capability
Price request Datasheet

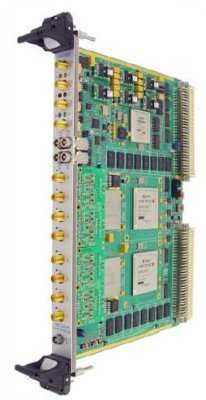

8 channel 6U VME digitizer/transient recorder with a sampling rate of up to 5 GS/s (for the individual channel) and 10-bit resolution. The board has a width of one VME slot (4TE).

The SIS3305 is a dual quad channel ADC chip based digitizer/transient recorder with 10-bit resolution. The four by four cross point switch ADC technology allows for two channel 5 GS/s, four channels 2.5GS/s and eight channels 1.25GS/s operation.

Xilinx Virtex 5 frontend FPGAs in combination with a Virtex 4 VME interface implementation allow for maximum data handling flexibility
