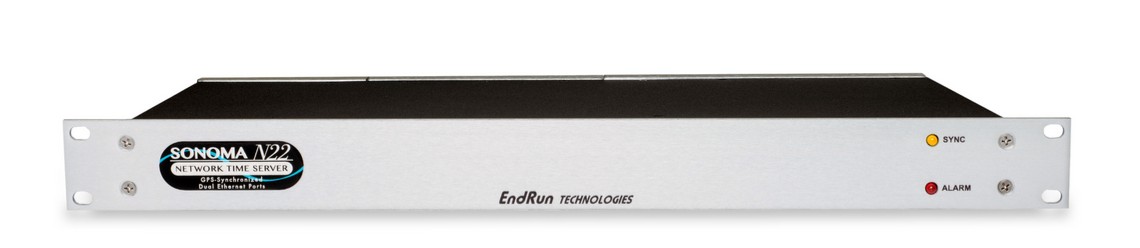

Sonoma N22 - GPS network time server

Main features

  • GPS-Synchronized.
  • Dual gigabit ports.
  • NTP server throughput of >50,000 requests per second.
  • Optional PTP/IEEE-1588 with hardware timestamping (future)
  • SNMP v3, SSH, HTTPS and more.
  • TACACS+, RADIUS, LDAP secure access authentication
  • IPv6 and IPv4 compliant.
  • Secure Web Interface to monitor status via your Internet browser.
  • Optional dual power supplies.
  • Daily and weekly data plots: CPU, NTP, GPS and Oscillator Statistics.
  • Serves NTP Stratum 1 time for
  • 24 hours if GPS signal is lost.
  • Up to 35 and 140 days with Premium and Rubidium Oscillator Upgrade Options.
  • Three-Year Warranty
Price request Datasheet Ask a question

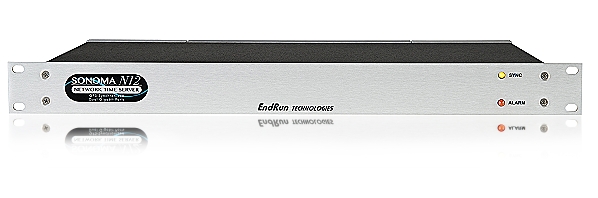

The Sonoma is GPS Time Server that provides an accurate and reliable source of network time inside your firewall.

The Sonoma can serve accurate time to any system running an NTP or SNTP client. With dual gigabit ports and a fast microprocessor for high-capacity packet throughput (50,000 packets/second), the Sonoma can support millions of network clients with an NTP timestamp accuracy of <10 microseconds.

The highly-integrated solid-state design is very reliable, and you can easily manage it via one of the network ports or the RS-232 serial port. A Web Interface (HTTPS) is also provided for status monitoring using your Internet browser.

3052-0000-000 GPS network time server

  • OscOptionsTS
  • USM3052-0000-000-Sonoma N22
