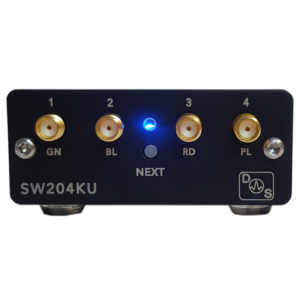

SW204KU - Four port RF switch 20GHz

Main features

  • Super-wideband 100MHz – 20GHz frequency range
  • Usable up to 22GHz with only 10dB insertion loss
  • 4 switched, 1 common premium gold SMA ports
  • Max RF input power (through) : +26 dBm (0.4W)
  • Max RF input power (terminated): +22 dBm
  • Low insertion loss (5dB Typical, 8dB max)
  • Solid-state reliability and speed
  • Bi-directional
  • Non-reflective design
  • Ultra-fast switching time
  • Superior isolation
  • LED port status indication
  • Impedance: 50 Ohm
  • Micro-USB powered
Price request Datasheet Ask a question

The SW204KU 4-Way solid-state RF switch is both USB controlled via SCPI commands, and a front panel select button. Convenient micro-USB power and status LEDs for the user make this switch extremely flexible and simple to setup. This non-reflective ultra-wideband SP4T switch is perfect for X and Ku-band automated or remote test setups.

Fast switching time and an affordable price point make this the best low-power switch on the market today. No special drivers are needed to send serial commands from any operating system or host device.

SW204KU Four port RF switch 20GHz
