Trifecta-GPU - PXIe/CPCIe GPUs – Flexible and Scalable

Main features

  • NVIDIA Ampere GPU: RTX-A2000 MXM 3.1 Type A
  • FP32 Peak Performance 8.3 FP32 TFLOPS (22.7x PXIe-7915 @ 410 GFLOPS)
  • CUDA & Other Cores: 2,560 CUDA / 20 RT / 80 TENSOR
  • On-Board Memory: 8 GB GDDR6 with 192-bit I/F (2x PXIe-7915 @ 4 GB DDR3)
  • On-Board Memory BW: 192 GB/Sec (11.3x PXIe-7915 @ 17 GB/Sec)
Price request Datasheet Ask a question

RADX Trifecta COTS, PXIe/CPCIe GPU Modules Bring Easy-to-Program NVIDIA RTX A2000 Embedded GPU with 8.3 FP32 TFLOPS Compute Performance to Modular T&M and EW Markets for Advanced, Software-Defined, Signal Processing and Machine / Deep Learning Inference Applications

The Trifecta-GPU™ Family of COTS PXIe/CPCIe GPU Modules are the first COTS products that bring the extreme compute acceleration and ease-of-programming of NVIDIA® RTX® A2000 Embedded GPUs to PXIe/CPCIe platforms for modular Test & Measurement (T&M) and Electronic Warfare (EW) applications.

Designed to complement RADX Catalyst-GPU products, Trifecta-GPUs deliver even greater compute performance by employing NVIDIA RTX Embedded GPUs. The Trifecta-GPU model is based on the RTX A2000, which features 8GB of GDDR6 DRAM, PCIe Express 4.0 and up to 8.3 FP32 TFLOPS peak compute performance. As with Catalyst-GPUs, Trifecta-GPUs feature comprehensive support for MATLAB™, Python, and C/C++ programing, as well as industry-best support for virtually all popular computing frameworks, making Trifecta-GPUs extremely easy-to-program for both Windows and Linux operating environments.

With their extreme levels of performance, Trifecta-GPUs are ideal for the most demanding Signal Processing, Machine Learning (ML) or Deep Learning (DL) inference applications for AI-based signal classification and geolocation, semiconductor & PCB testing, failure prediction, failure analysis, and other important missions.

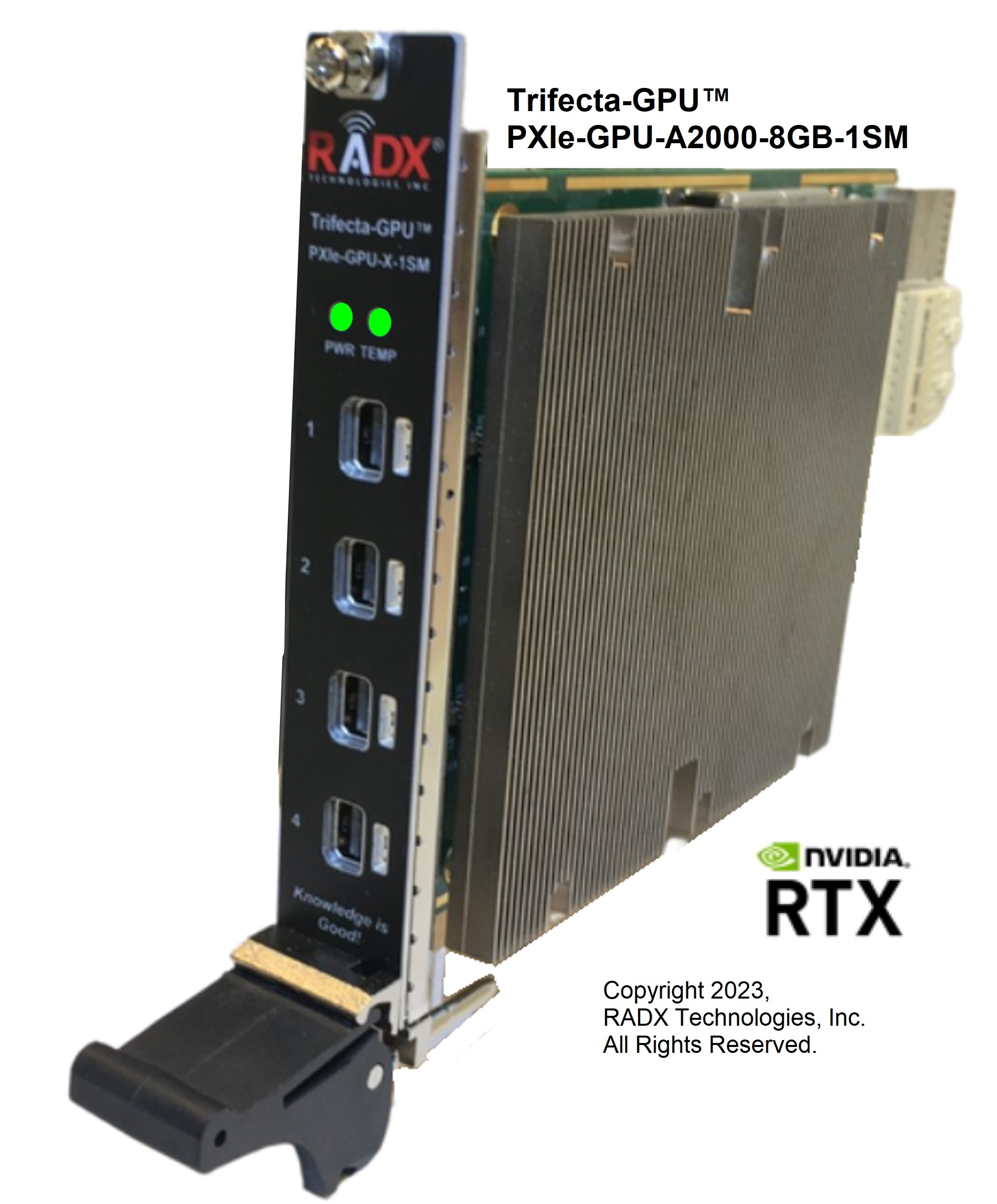

PXIe-GPU-A2000-8GB-1SM - PXIe GPU 1 Slot - 58 Watts per slot

GPU

PXIe-GPU-A2000-8GB-2SM - PXIe GPU 2 Slots - 29 Watts per slot

GPU

Trifecta-GPU PXIe/CPCIe GPUs – Flexible and Scalable
PXIe-GPU-A2000-8GB-1SM PXIe GPU 1 Slot - 58 Watts per slot
PXIe-GPU-A2000-8GB-2SM PXIe GPU 2 Slots - 29 Watts per slot
