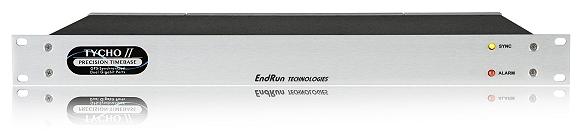

Tycho 2 - GPS frequency reference

Main features

  • A 1 PPS output with <20 nanoseconds RMS timing accuracy to GPS.  10-Nanosecond Calibration Option available.
  • A frequency accuracy better than 1×10-13.
  • An amplitude-modulated, user-selectable timecode output (IRIG-B, NASA-36, 2137).
  • A network port with SSH, Telnet, FTP, SNMP, Enterprise MIB and more.
  • An RS-232 serial port.
  • Two-year warranty, free technical support and software upgrades for life.
  • Options: OCXO, Low Phase Noise Outputs, 10 MPPS, Pulse Rates, Alarm, -48Vdc Input.
Price request Datasheet

The Tycho GPS Frequency Reference provides the most precise and stable, GPS-synchronized, time & frequency outputs in the world.  The Tycho uses software algorithms that are the result of over 20 years of engineering experience in the frequency control industry.  These algorithms steer the outputs and isolate them from system anomalies, providing you with unmatched precision and accuracy.

Low Phase Noise Output Option
This option provides four or eight isolated, 5 or 10 MHz, frequency output signals with exceptional spectral purity.  Careful attention to power supply filtering and signal routing preserve the same high-performance phase noise and spurious noise characteristics as the source oscillator.

3041-0001-000GPS frequency reference
