VX6620 - PXI System Power Supply

Main features

  • CompactPCI system power supply, single output
    (±10V/±1A, ±20V/±500mA, ±40V/±250mA and ±60V/±200mA)
  • Supports current source and sink
  • No external power source required
  • Read back function for output voltage and current
  • Dual mode, provides two power ranges
  • Very fast rise and fall times
  • Sense inputs for superior load regulations
  • Auto sensing to protect UUTs reliable
  • Digital calibration via system interface, no analog adjustments
  • High precision mode available
Clear
Price request Datasheet

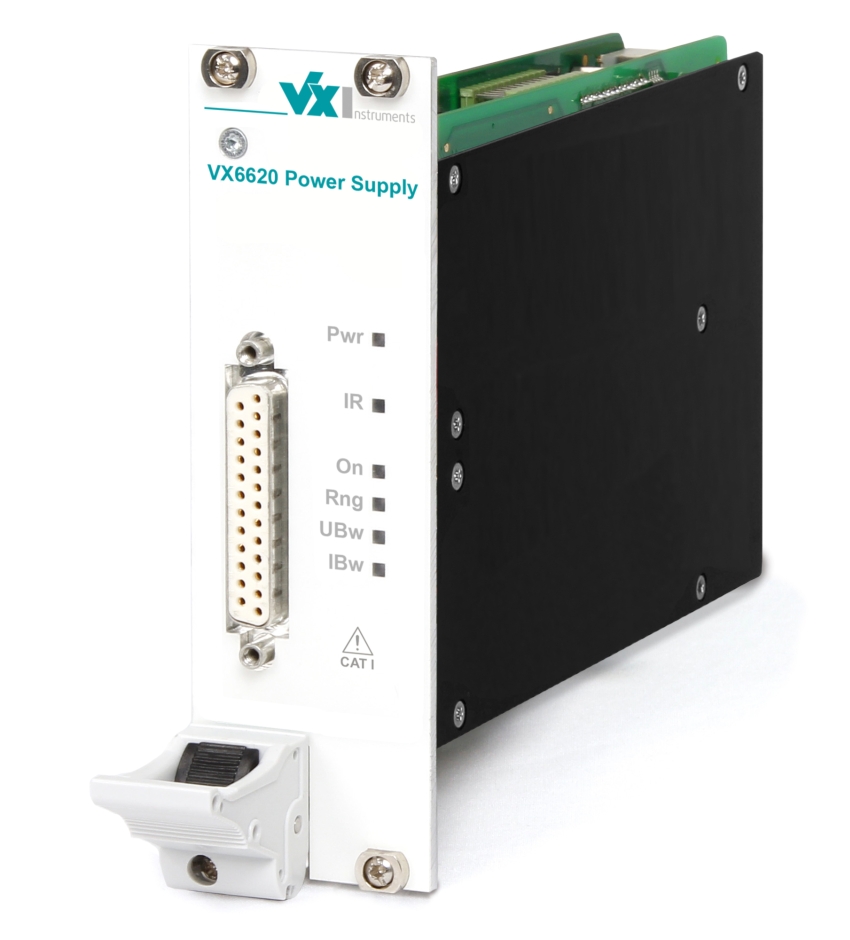

The VX6620 is a 2 slot 3U register based CPCI power supply with a single programmable output. The output is floating. The power supply is specially designed for Automated Test Equipment (ATE). An auto sensing feature is integrated as a build-in security to protect Units Under Test (UUT).

The programmable output voltage and current is available in various ranges (±10V/±1A, ±20V/±500mA, ±40V/±250mA and ±60V/±200mA). The VX6620 supports current source and sink in all 4 quadrants. Optionally the VX6620 can be configured with an integrated read-back function for output voltage and current. The dual mode option combines two output ranges in one module (±10V/±1A and ±20V/±500mA, or ±20V/±500mA and ±40V/±250mA, or ±30V/400mA and ±60V/±200mA).

The VX6620 does not require an external DC source. The supplied power at the PXI backplane will be used to generate the output power. All required internal voltages are generated with special designed DC/DC converters with extremely low noise.

An auto sensing feature is integrated as a build-in security to protect Units Under Test (UUT)

VX6620-10 - Output power : ± 10V/ ± 1A

Power supply

VX6620-20 - Output power : ± 20V/ ± 0.5A

Power supply

VX6620-40 - Output power : ± 40V/ ± 0.25A

Power supply

VX6620-60 - Output power : ± 60V/ ± 0.20A

Power supply

Option A - Measurement unit for voltage and current

Power supply

Option B - Dual mode, provides a second power ranges with half voltage and higher current

Power supply

Option C - Low noise option

Power supply

Option PBF - All components RoHS compliant

Power supply

VX6620PXI System Power Supply
VX6620-10Output power : ± 10V/ ± 1A
VX6620-20Output power : ± 20V/ ± 0.5A
VX6620-40Output power : ± 40V/ ± 0.25A
VX6620-60Output power : ± 60V/ ± 0.20A
VX6620 Option AMeasurement unit for voltage and current
VX6620 Option BDual mode, provides a second power ranges with half voltage and higher current
VX6620 Option CLow noise option
VX6620 Option PBFAll components RoHS compliant
