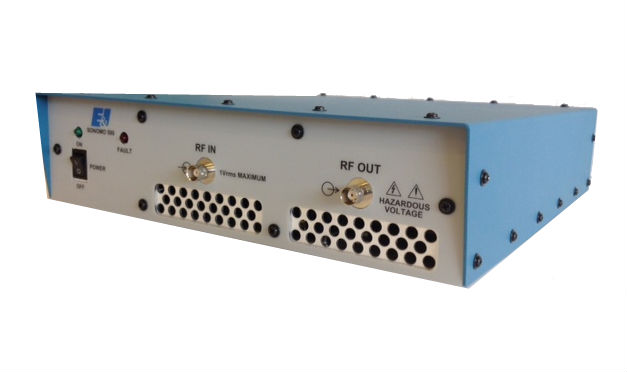

210L - RF power amplifier 10KHz - 20MHz, 10 watts

Main features

  •  10 KHz to 20 MHz
  • Instantaneous Bandwidth
  • 10 W 1dB Compression
  • 20 W saturated power
  • Solid State  Air Cooled
Price request Datasheet

The 210L Amplifier is a rugged source of RF power, useful for ultrasonics, laser modulation, RFI/EMI, plasma equipment and general laboratory applications. The 210L represents E&I’s commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.

The E&I 210L RF Power Amplifier produces 10 Watts of class A linear power output over the entire frequency range from 10 KHz to 20 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 40 dB with a typical gain flatness of +/- 1.5 dB.
The E&I 210L RF Power Amplifier is compatible with most signal generators, frequency synthesizers, sweep generators and other laboratory signal sources. It accurately reproduces all waveforms within its power and frequency ranges: AM. FM, SSB, pulsed and other complex modulation schemes.

The E&I 210L RF Power Amplifier is built to withstand a 13 dBm input (1.0 Volt RMS) for any VSWR load condition. The internal switched mode power supply is very conservatively rated, in order to facilitate operation over a large range of line conditions and temperatures. The forced air cooling provides for low internal temperatures, providing long term reliability. The RF power is delivered by rugged DMoS FETs, de-rated to provide for excellent MTBF figures.
