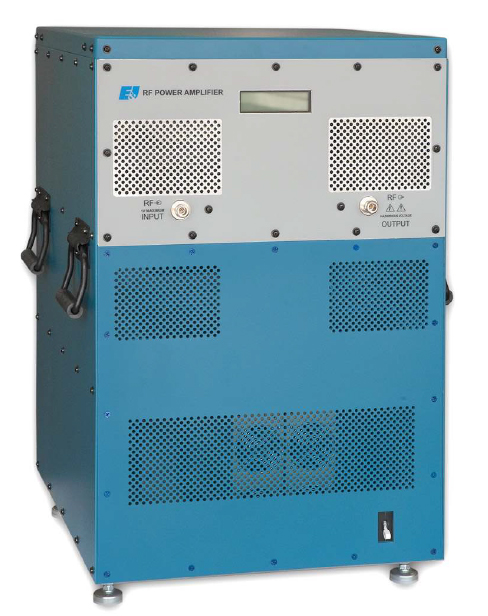

2500L - RF power amplifier 50KHz - 12MHZ, 500 watts

Main features

  • 50 KHz to 12 MHz
  • 500 W
  • Instantaneous Bandwidth
  • 1dB Compression
  • Solid State  Air Cooled
Price request Datasheet

The 2500L Amplifier is a rugged source of RF power for ultrasonics, induction heating and laser modulation as well as plasma applications. It is a totally solid state solution employing RF DMoS FETs in the power amplification stages, offering simultaneous forward and reverse power readouts, and an RS232 port for data collection. The 2500L reflects E&I’s commitment to reliable and robust RF power.

The 2500L RF Power Amplifier produces 500 Watts of linear class A power over a frequency range of 50 KHz to 12 MHz, with a nominal power gain of 60 dB (+/- 2dB). Operation over the entire frequency range is possible without the need for any switching.

The front panel display provides simultaneous measurements of forward and reflected power as well as the unit’s status. The RS232 connector at the rear of the unit can also be used to capture this data and reset the unit should a fault occur.

The E&I 2500L RF Power Amplifier is a 19” rack mount unit 24.5” high. It employs an integral power supply capable of operation from 200-240 VAC 50–60 Hz. The unit weighs approximately 190 lbs or 90 Kg.
