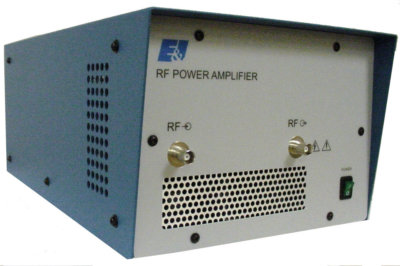

411LA - RF power amplifier 150KHz - 300MHz, 10 watts

Main features

  • 150 KHz to 300 MHz
  • Rugged Compact Design
  • Instantaneous Bandwidth
  • 10Watts Class A linearity
  • Forced Air Cooling
Price request Datasheet Ask a question

 The 411LA Amplifier is a rugged source of RF power for HF and VHF transmitters, RFI / EMI testing, Plasma equipment and general laboratory applications. Utilizing solid state ruggedized MosFet devices it features an internal RMS power meter and concurrently displays both forward and reverse power.

The 411LA Linear RF Power Amplifier produces 10 Watts of Class A linear power over the frequency range of 150 KHz to 300 MHz with low harmonic distortion. Operation over the entire frequency band is possible without the need for any switching, it is true instantaneous bandwidth. The unit is rated at 40 dB gain with a typical gain flatness of +/- 2.5 dB

The 411LA Linear RF Power Amplifier is a rugged amplifier built to withstand an input of +13 dBm (1.0V RMS) for all output load conditions including shorts and open circuits. The unit amplifies inputs of AM, FM SSB, TV and all complex modulation forms with <-22 dBc harmonic distortion and low spurious content

411LA RF power amplifier 150KHz - 300MHz, 10 watts
