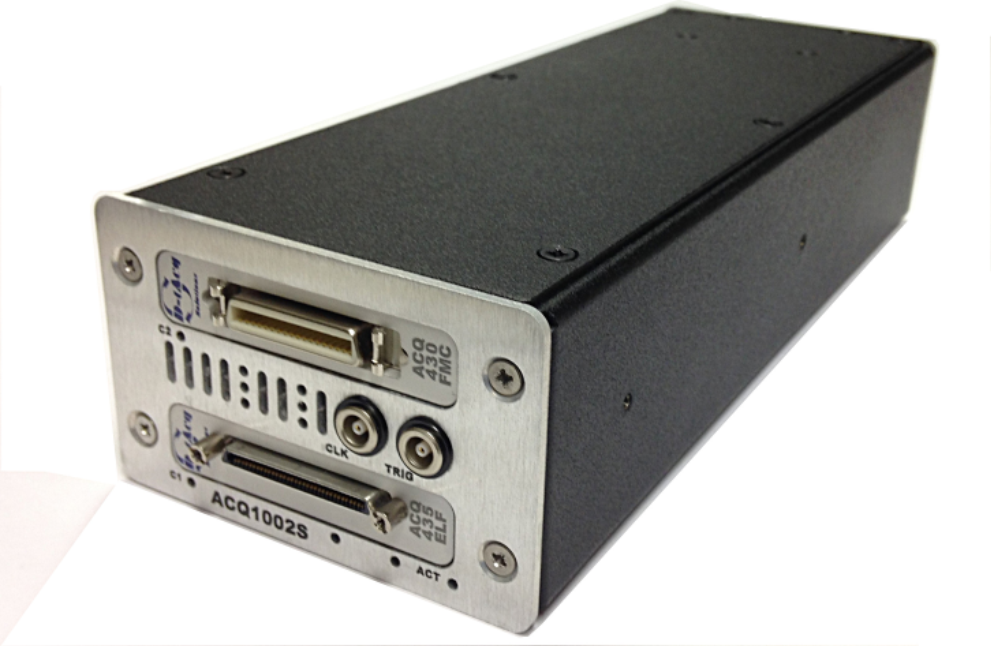

ACQ1002S - FMC/ELF carrier Long, Narrow, Compact 2 slots

Main features

  • 2 Slots Compact Carrier unit for FMC and ELF modules
  • Up to 64 channels into one enclosure
  • Xilinx Zynq-7000 All programmable SoC Z-7020 running Linux
  • Ethernet connectivity
  • USB Internal and external connections
  • External SD Card
  • External clock and Trigger provided
Price request Datasheet Ask a question

ACQ10002S carrier units support both FMC and ELF modules. The carriers feature the Xilinx Zynq System-on-Chip architecture, featuring low power and integral FPGA device. Carriers are engineered to allow the maximum DAQ payload in minimum space.

ACQ1002S is designed to accommodate up to two  ELF modules, or an  ELF module and an FMC module, allowing up to 64 simultaneous analogue data acquisition channels in one enclosure. ACQ1002S use a Xilinx Zynq-7000 All Programmable SoC Z-7020 running Linux.

Connectivity is provided by gigabit Ethernet. External Clock and Trigger inputs are also provided, and multiple units may be synchronized together. Expansion options are provided on ACQ1002S and include internal and external USB 2.0 connections and an external SD Card allowing for storage expansion, and PMOD connectivity for custom user modules such as GPS sync inputs respectively.

ACQ1002S are designed to fit up to 5 units within a 1U, 19” rack. ACQ1002S also ships in a compact configuration for use in PIGs or other space-restricted applications.
