ACQ1001Q - FMC/ELF carrier unit 1 slot

Main features

  • 1 Slot Carrier unit for FMC and ELF modules
  • Up to 32 channels into one enclosure
  • Xilinx Zynq-7000 All programmable SoC Z-7020 running Linux
  • Ethernet connectivity
  • External clock and Trigger provided
Price request Datasheet

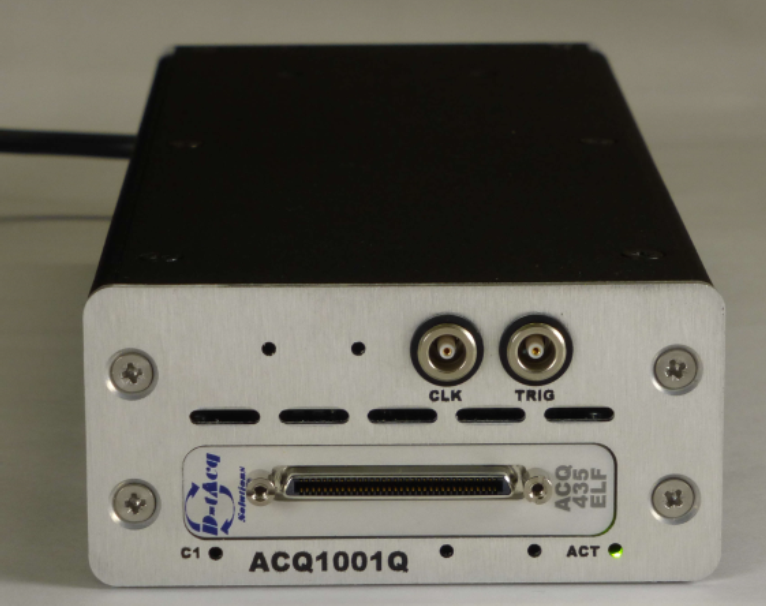

ACQ1001Q carrier units support both FMC and ELF modules. The carriers feature the Xilinx Zynq System-on-Chip architecture, featuring low power and integral FPGA device. Carriers are engineered to allow the maximum DAQ payload in minimum space.

ACQ1001Q is a miniature carrier designed to accommodate a single ELF or FMC module, allowing up to 32 simultaneous analogue data acquisition channels in one enclosure. The carrier use a Xilinx Zynq-7000 All Programmable SoC Z-7020 running Linux.

Connectivity is provided by gigabit Ethernet. External Clock and Trigger inputs are also provided, and multiple units may be synchronized together. ACQ1001Q is designed to fit up to 5 units within a 1U, 19” rack.

ACQ1000QFMC/ELF carrier unit 1 slot
