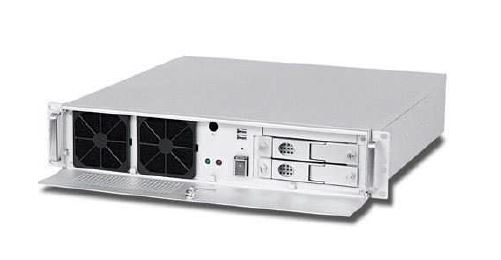

AcquiSTREAM-8-HS - 8-HS Data Recorder

Main features

  • Data Recorder
    Up 5 MHz Bandwidth (16 Bit version)
    Sample Rates up to 2 MS/s per Channel
    8 Channels with up to 1M samples per channel
    Streaming mode to RAM & disk
    Breakout Board and Cable
  • Arbitrary Waveform Generator
    (16 Bit version)
    Sample Rates up to 1MS/s on four channels
  • Static Generator
    (12 Bit version)
    Four static DAC
  • 16 TTL Digital I/O

  • Open PC platform
    PC base with Windows XP, 1GM RAM
    300 Gbytes SATA II Hard drive
    DVD Drive
    Small Footprint/Lightweight
  • Software
    AcquiFlex software
    Time & Frequency domain display
    Zoom on time display
    Streaming to PC RAM
    Waveform Autosave
    Save & Restore Setup
    Decimation mode
    Averaging & FIR
    Waveform editor
    Logic pattern display
    Multi-language interface
Price request Datasheet

2MS/s 12 or 16 Bit data Recorder 2 MS/s, 8Ch, 12-bit or 16-bit,

Streamer 4 DAC, 12-Bit or 16-Bit 16 Static TTL Digital I/O.

Logiciel Acquiflex

AcquiSTREAM-8-HS8-HS Data Recorder
