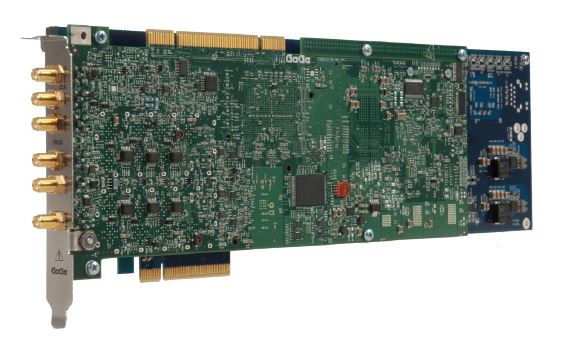

Cobra Express - 2 GS/s, 8-Bit High speed data acquisition board

Main features

  • 2 GS/s Digitization on one channel
  • Simultaneous 1 GS/s Sampling on 2 channels
  • PCI Express 2.0 x8
  • Features Multiple Record including capture of Pre-trigger data
  • Up to 1 GHz Bandwidth
  • 2GS base memory with optional upgrade to 32GS
  • 45 dB Signal to Noise Ratio
  • Variable Gain Input Amplifier
  • Powerful eXpert™ on-board firmware options such as Signal Averaging
  • Advanced timing features such as
    Trigger Time-stamping, Clock In/Clock Out, Trig In/Trig out, 10 MHz Reference Clocking
  • Up to 8 Cards in a Master/Slave System for up to 8 Simultaneous channels at 2 GS/s and 16 channels at 1 GS/s
  • Software Development Kits for C/C#, MATLAB, LabVIEW
Price request Datasheet Ask a question

The high speed data acquisition boards CompuScope Cobra Express, PCI Express format, features 8-bit resolution with sampling rates up to 2.0 GS/s with true Effective Number of Bits (ENOB) of 7.4-bits with 10 MHz input.

On-board digitizer sample memory is expandable up to 32 GS and up to 8 Cobra Express high speed digitizers can be combined for up to 16 channels in a single system.

Cobra for ultrasonic nondestructive inspection systems

  • Most ultrasonic nondestructive inspection systems are  equipped with one or more position encoders, which accurately measure the position or angle of a scanning ultrasonic transducer or sample.
    Although position encoders may operate with general purpose digitizers in ultrasonic inspection systems, Cobra digitizer equipped with encoder reading capability allow for the fastest possible scan rates.
    Specifically, digitizers like Cobra that can read encoders are able to  overcome slow native encoder software interfaces and mitigate non-deterministic behavior in the Windows environment.
    GaGe Cobra digitizers that are equipped with position encoder reading capability addresses these modern ultrasonic inspection systems.
CBE-021-000 - 2 channels, 1 GS/s sampling max, 8-Bit, 2 GS memory

Cobra

CBE-022-000 - 2 channels, 2 GS/s sampling max, 8-Bit, 2 GS memory

Cobra

CBE-181-012 - Master Multi-Card Upgrade

Cobra

CBE-181-013 - Slave Multi-Card Upgrade

Cobra

CBE-181-101 - Memory Upgrade: 2 GS to 4 GS

Cobra

CBE-181-103 - Memory Upgrade: 2 GS to 8 GS

Cobra

CBE-181-105 - Memory Upgrade: 2 GS to 16 GS

Cobra

CBE-181-107 - Memory Upgrade: 2 GS to 32 GS

Cobra

Cobra 2 GS/s, 8-Bit High speed data acquisition board
CBE-022-000 2 channels, 1 GS/s sampling max, 8-Bit, 2 GS memory
CBE-021-000 2 channels, 2 GS/s sampling max, 8-Bit, 2 GS memory
CBE-181-012 Master Multi-Card Upgrade
CBE-181-013 Slave Multi-Card Upgrade
CBE-181-101 Memory Upgrade: 2 GS to 4 GS
CBE-181-103 Memory Upgrade: 2 GS to 8 GS
CBE-181-105 Memory Upgrade: 2 GS to 16 GS
CBE-181-107 Memory Upgrade: 2 GS to 32 GS
