DIO_3118 - FMC Digital Input / Output

Main features

  • Single width FMC VITA 57.1-2008 :
    • HPC 400 pins connector
    • Two (2) 3M Shrunk Delta Ribbon (SDR) connectors
    • ~1[W] typical power consumption
  • Sixteen (16) TTL digital inputs (+24V tolerant)
  • Sixteen (16) TTL digital outputs
  • One (1) LVDS input
  • One (1) LVDS output
  • TTL inputs and outputs can be configured as LVDS through pre-defined factory settings
  • Two (2) clock references / trigger I/O
  • I2C EEPROM connected to FMC SMBus
  • Temperature monitoring (TMP102)
  • Commercial temperature grade (0 – 50°C)
  • FPGA Design Kit for Xilinx Virtex-6T and Kintex UltraScale FPGAs
  • Total integration within EPICS ecosystem
Price request Datasheet Ask a question

The DIO_3118, a digital input / output module in FMC HPC (High Pin Count) form factor featuring sixteen(16) TTL digital inputs
(+24V tolerant), sixteen (16) TTL digital outputs, one(1) LVDS input and one(1) LVDS output. This board completes the IOxOS Technologies comprehensive product line of high-end ADC, DAC and Digital I/O modules in FMC form factor targeting high-end data acquisition and distributed control system applications.

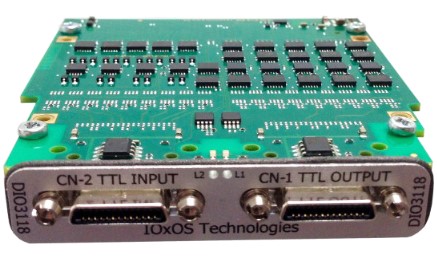

The DIO_3118 front-panel is equipped with two configurable status LEDs directly connected to the carrier FPGA and two SDR connectors from 3M keeping all inputs and outputs separated in different connectors.

The TTL inputs and outputs can be configured as LVDS through pre-defined factory settings.

A FPGA Design Kit for the DIO_3118 is available for its straight-forward integration within IOxOS Technologies’ VME64x and MTCA.4 carrier boards (IFC series) featuring Xilinx Virtex-6T and Kintex UltraScale FPGA devices.

DIO_3118 FMC Digital Input / Output
