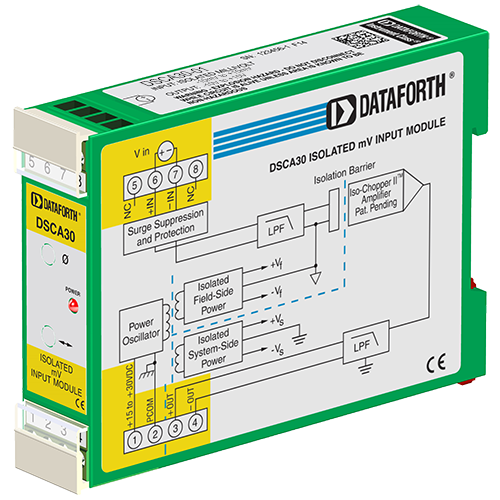

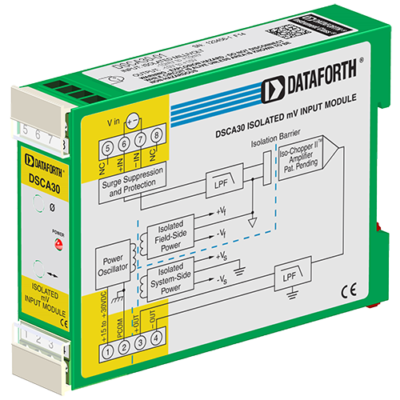

DSCA30 - Analog Voltage Input Signal Conditioners, Narrow Bandwidth

Main features

  • Accepts Millivolt Level Signals
  • Industry Standard Output of either 0 to 10V/±10V, 0 to 20mA, or 4 to 20mA
  • 1500Vrms Transformer Isolation
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240VAC Continuous
  • True 3-Way Isolation
  • Wide Range of Supply Voltage
  • 160dB CMR
  • 85dB NMR at 60Hz, 80dB at 50Hz
  • ±0.03% Accuracy
  • ±0.01% Linearity
  • Easily Mounts on Standard DIN Rail
  • C-UL-US Listed
  • CE and ATEX Compliant
Clear
Price request Datasheet

Each DSCA30 voltage input module provides a single channel of analog input which is filtered, isolated, amplified, and converted to a high-level voltage output. Signal filtering is accomplished with a five-pole filter which provides 85dB of normal-mode rejection at 60Hz and 80dB at 50Hz. An anti-aliasing npole is located on the field side of the isolation barrier, and the other four poles are on the system side. After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit. Isolation is provided by transformer coupling, again using a proprietary technique to suppress transmission of common mode spikes or surges.

Module output is either voltage or current. For current output models a dedicated loop supply is provided at terminal 3 (+OUT) with loop return located at terminal 4 (-OUT). The system-side load may be either floating or grounded.

Special input circuits provide protection against accidental connection of power-line voltages up to 240VAC and against transient events as defined by ANSI/IEEE C37.90.1. Protection circuits are also present on the signal output and power input terminals to guard against transient events and power reversal. Signal and power lines are secured to the module using screw terminals which are in pluggable terminal blocks for ease of system assembly and reconfiguration.

The modules have excellent stability over time and do not require recalibration, however, zero and span settings are adjustable up to ±5% to accommodate situations where fine-tuning is desired. The adjustments are made using potentiometers located under the front panel label and are non-interactive for ease of use.

DSCA30-01 - Input Range: ±10mV Output Range: ±10V

DSCA

DSCA30-02 - Input Range: ±50mV Output Range: ±10V

DSCA

DSCA30-03 - Input Range: ±100mV Output Range: ±10V

DSCA

DSCA30-04 - Input Range: ±10mV Output Range: 0 to 10V

DSCA

DSCA30-04C - Input Range: ±10mV Output Range: 4 to 20mA

DSCA

DSCA30-04E - Input Range: ±10mV Output Range: 0 to 20mA

DSCA

DSCA30-05 - Input Range: ±50mV Output Range: 0 to 10V

DSCA

DSCA30-05C - Input Range: ±50mV Output Range: 4 to 20mA

DSCA

DSCA30-05E - Input Range: ±50mV Output Range: 0 to 20mA

DSCA

DSCA30-06 - Input Range: ±100mV Output Range: 0 to 10V

DSCA

DSCA30-06C - Input Range: ±100mV Output Range: 4 to 20mA

DSCA

DSCA30-06E - Input Range: ±100mV Output Range: 0 to 20mA

DSCA

DSCA30-07 - Input Range: 0 to 10mV Output Range: 0 to 10V

DSCA

DSCA30-07C - Input Range: 0 to 10mV Output Range: 4 to 20mA

DSCA

DSCA30-08 - Input Range: 0 to 50mV Output Range: 0 to 10V

DSCA

DSCA30-07E - Input Range: 0 to 10mV Output Range: 0 to 20mA

DSCA

DSCA30-08C - Input Range: 0 to 50mV Output Range: 4 to 20mA

DSCA

DSCA30-08E - Input Range: 0 to 50mV Output Range: 0 to 20mA

DSCA

DSCA30-09 - Input Range: 0 to 100mV Output Range: 0 to 10V

DSCA

DSCA30-09C - Input Range: 0 to 100mV Output Range: 4 to 20mA

DSCA

DSCA30-09E - Input Range: 0 to 100mV Output Range: 0 to 20mA

DSCA

DSCA30Analog Voltage Input Signal Conditioners, Narrow Bandwidth
DSCA30-01Input Range: ±10mV Output Range: ±10V
DSCA30-02Input Range: ±50mV Output Range: ±10V
DSCA30-03Input Range: ±100mV Output Range: ±10V
DSCA30-04Input Range: ±10mV Output Range: 0 to 10V
DSCA30-04CInput Range: ±10mV Output Range: 4 to 20mA
DSCA30-04EInput Range: ±10mV Output Range: 0 to 20mA
DSCA30-05Input Range: ±50mV Output Range: 0 to 10V
DSCA30-05CInput Range: ±50mV Output Range: 4 to 20mA
DSCA30-05EInput Range: ±50mV Output Range: 0 to 20mA
DSCA30-06Input Range: ±100mV Output Range: 0 to 10V
DSCA30-06CInput Range: ±100mV Output Range: 4 to 20mA
DSCA30-06EInput Range: ±100mV Output Range: 0 to 20mA
DSCA30-07Input Range: 0 to 10mV Output Range: 0 to 10V
DSCA30-07CInput Range: 0 to 10mV Output Range: 4 to 20mA
DSCA30-08Input Range: 0 to 50mV Output Range: 0 to 10V
DSCA30-07EInput Range: 0 to 10mV Output Range: 0 to 20mA
DSCA30-08CInput Range: 0 to 50mV Output Range: 4 to 20mA
DSCA30-08EInput Range: 0 to 50mV Output Range: 0 to 20mA
DSCA30-09Input Range: 0 to 100mV Output Range: 0 to 10V
DSCA30-09CInput Range: 0 to 100mV Output Range: 4 to 20mA
DSCA30-09EInput Range: 0 to 100mV Output Range: 0 to 20mA
