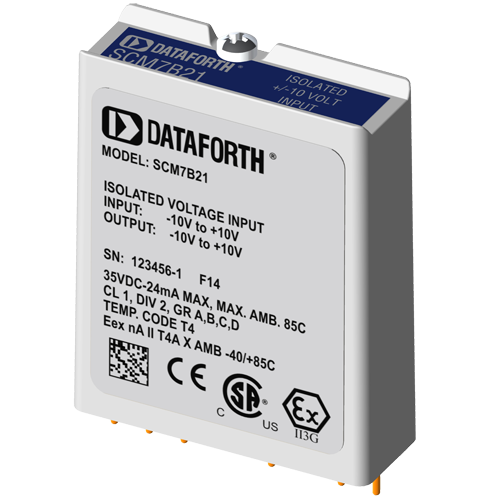

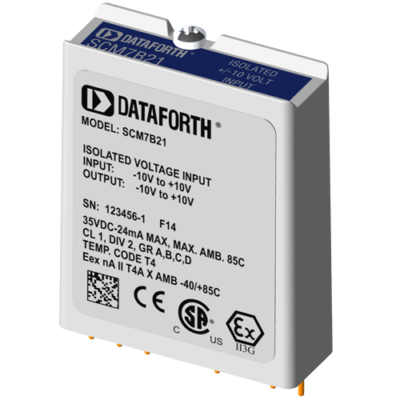

SCM7B21/30/31 - Isolated Analog Voltage Input Modules

Main features

  • Accepts Millivolt and Voltage Level Signals
  • Provides High-Level Voltage Outputs
  • 1500Vrms Transformer Isolation
  • Accuracy, ±0.03% of Span Typical, ±0.1% Max
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 120Vrms Continuous
  • Noise, 500μV Peak (5MHz), 250μV RMS (100kHz)
  • CMRR, up to 160dB
  • NMR, up to 85dB
  • Easy DIN Rail Mounting
  • CSA Certified, FM Approved
  • CE and ATEX Compliant
Clear
Price request Datasheet

Each SCM7B21/30/31 voltage input module accepts one channel of analog voltage input which is filtered, isolated, amplified, and converted to a high-level analog voltage for output to the process control system.

These modules incorporate a five-pole filtering approach to maximize both time and frequency response by taking advantage of both Thomson (Bessel) and Butterworth characteristics. One pole of the filter is on the field side of the isolation barrier; four are on the process control system side.

After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The signal is then reconstructed and filtered for process control system output.

Modules accept a wide 14 – 35VDC power supply range (+24VDC nominal). Their compact packages (2.13″x1.705″x0.605″ max) save space and are ideal for high channel density applications. They are designed for easy DIN rail mounting using any of the “-DIN” backpanels.

SCM7B21 - Input Range: -10 to +10 V Output Range: -10 to +10 V

7B

SCM7B30-01 - Input Range: 0 to +10 mV Output Range: +1 to +5 V

7B

SCM7B30-01A - Input Range: 0 to +10 mV Output Range: 0 to +5 V

7B

SCM7B30-01D - Input Range: 0 to +10 mV Output Range: 0 to +10 V

7B

SCM7B30-02 - Input Range: 0 to +100 mV Output Range: +1 to +5 V

7B

SCM7B30-02A - Input Range: 0 to +100 mV Output Range: 0 to +5 V

7B

SCM7B30-02D - Input Range: 0 to +100 mV Output Range: 0 to +10 V

7B

SCM7B30-03 - Input Range: 0 to +1 V Output Range: +1 to +5 V

7B

SCM7B30-03A - Input Range: 0 to +1 V Output Range: 0 to +5 V

7B

SCM7B30-03D - Input Range: 0 to +1 V Output Range: 0 to +10 V

7B

SCM7B30-05 - Input Range: +1 to +5 V Output Range: +1 to +5 V

7B

SCM7B30-05A - Input Range: +1 to +5 V Output Range: 0 to +5 V

7B

SCM7B30-05D - Input Range: +1 to +5 V Output Range: 0 to +10 V

7B

SCM7B30-06 - Input Range: -10 to +10 mV Output Range: +1 to +5 V

7B

SCM7B30-06A - Input Range: -10 to +10 mV Output Range: 0 to +5 V

7B

SCM7B30-06D - Input Range: -10 to +10 mV Output Range: 0 to +10 V

7B

SCM7B30-07 - Input Range: -100 to +100 mV Output Range: +1 to +5 V

7B

SCM7B30-07A - Input Range: -100 to +100 mV Output Range: 0 to +5 V

7B

SCM7B30-07D - Input Range: -100 to +100 mV Output Range: 0 to +10 V

7B

SCM7B30-08 - Input Range: -1 to +1 V Output Range: +1 to +5 V

7B

SCM7B30-08A - Input Range: -1 to +1 V Output Range: 0 to +5 V

7B

SCM7B30-08D - Input Range: -1 to +1 V Output Range: 0 to +10 V

7B

SCM7B31-01 - Input Range: 0 to +10 V Output Range: +1 to +5 V

7B

SCM7B31-01A - Input Range: 0 to +10 V Output Range: 0 to +5 V

7B

SCM7B31-01D - Input Range: 0 to +10 V Output Range: 0 to +10 V

7B

SCM7B31-02 - Input Range: -5 to +5 V Output Range: +1 to +5 V

7B

SCM7B31-02A - Input Range: -5 to +5 V Output Range: 0 to +5 V

7B

SCM7B31-02D - Input Range: -5 to +5 V Output Range: 0 to +10 V

7B

SCM7B31-03 - Input Range: -10 to +10 V Output Range: +1 to +5 V

7B

SCM7B31-03A - Input Range: -10 to +10 V Output Range: 0 to +5 V

7B

SCM7B31-03D - Input Range: -10 to +10 V Output Range: 0 to +10 V

7B

SCM7B31-04 - Input Range: 0 to +5 V Output Range: +1 to +5 V

7B

SCM7B31-04A - Input Range: 0 to +5 V Output Range: 0 to +5 V

7B

SCM7B31-04D - Input Range: 0 to +5 V Output Range: 0 to +10 V

7B

SCM7B21/30/31Isolated Analog Voltage Input Modules
SCM7B21Input Range: -10 to +10 V Output Range: -10 to +10 V
SCM7B30-01Input Range: 0 to +10 mV Output Range: +1 to +5 V
SCM7B30-01AInput Range: 0 to +10 mV Output Range: 0 to +5 V
SCM7B30-01DInput Range: 0 to +10 mV Output Range: 0 to +10 V
SCM7B30-02Input Range: 0 to +100 mV Output Range: +1 to +5 V
SCM7B30-02AInput Range: 0 to +100 mV Output Range: 0 to +5 V
SCM7B30-02DInput Range: 0 to +100 mV Output Range: 0 to +10 V
SCM7B30-03Input Range: 0 to +1 V Output Range: +1 to +5 V
SCM7B30-03AInput Range: 0 to +1 V Output Range: 0 to +5 V
SCM7B30-03DInput Range: 0 to +1 V Output Range: 0 to +10 V
SCM7B30-05Input Range: +1 to +5 V Output Range: +1 to +5 V
SCM7B30-05AInput Range: +1 to +5 V Output Range: 0 to +5 V
SCM7B30-05DInput Range: +1 to +5 V Output Range: 0 to +10 V
SCM7B30-06Input Range: -10 to +10 mV Output Range: +1 to +5 V
SCM7B30-06AInput Range: -10 to +10 mV Output Range: 0 to +5 V
SCM7B30-06DInput Range: -10 to +10 mV Output Range: 0 to +10 V
SCM7B30-07Input Range: -100 to +100 mV Output Range: +1 to +5 V
SCM7B30-07AInput Range: -100 to +100 mV Output Range: 0 to +5 V
SCM7B30-07DInput Range: -100 to +100 mV Output Range: 0 to +10 V
SCM7B30-08Input Range: -1 to +1 V Output Range: +1 to +5 V
SCM7B30-08AInput Range: -1 to +1 V Output Range: 0 to +5 V
SCM7B30-08DInput Range: -1 to +1 V Output Range: 0 to +10 V
SCM7B31-01Input Range: 0 to +10 V Output Range: +1 to +5 V
SCM7B31-01AInput Range: 0 to +10 V Output Range: 0 to +5 V
SCM7B31-01DInput Range: 0 to +10 V Output Range: 0 to +10 V
SCM7B31-02Input Range: -5 to +5 V Output Range: +1 to +5 V
SCM7B31-02AInput Range: -5 to +5 V Output Range: 0 to +5 V
SCM7B31-02DInput Range: -5 to +5 V Output Range: 0 to +10 V
SCM7B31-03Input Range: -10 to +10 V Output Range: +1 to +5 V
SCM7B31-03AInput Range: -10 to +10 V Output Range: 0 to +5 V
SCM7B31-03DInput Range: -10 to +10 V Output Range: 0 to +10 V
SCM7B31-04Input Range: 0 to +5 V Output Range: +1 to +5 V
SCM7B31-04AInput Range: 0 to +5 V Output Range: 0 to +5 V
SCM7B31-04DInput Range: 0 to +5 V Output Range: 0 to +10 V
