DsScope - Signal Recording & Playback Viewer Oscilloscope Software

Main features

  • Windows PC Oscilloscope with Real-Time Signal Recording & Monitoring
  • Actively Monitor Displayed Snapshots During Real-Time Live Recordings
  • Supports GaGe High-Speed 8-16-Bit Multi-Channel Digitizers up to 6 GS/s
  • Control & Operate Multiple Digitizers in a Single System
  • Save/Load Digitizer Setup & Analysis Display Configurations
  • Analysis Displays Include:
    • Time Domain
    • Frequency Domain
    • Spectrogram
    • Persistence
    • Histogram
  • Scope Cursors with Track Mode for Display Analysis Measurements
  • Supports Digitizer On-Board Memory & Streaming Acquisition Modes
  • Signal Recording Duration by File Size, Elapsed Time, or Both Flexible Signal Recording Output Filename Management Parameters
  • File Span Recording Splits Long Recordings into Multiple Size-Specified Files
  • Easy Import of Recording Files into 3rd Party Apps with Raw Binary Data
  • Control & Monitor Multiple Systems Remotely with Server/Client Options
  • Remote Client Create/Run Script Execution Operations for Servers
  • Programming-Free GUI Operation
  • No Programming Skills Required
Price request Datasheet Ask a question

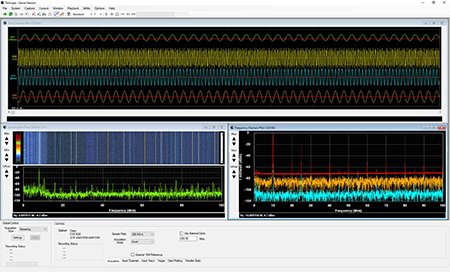

DsScope is a Windows based PC oscilloscope application that requires no programming for digitizer operation, display acquired signal data for analysis, and conduct IF real-time streaming signal recordings to storage with live monitoring. Analysis displays include Time Domain, Frequency Spectrum, and Spectrogram.

The companion DsScopeView application allows an operator to open/view and conduct playback of previous signal recordings to the display monitor for analysis, with additional display capabilities that include persistence and histogram modes.

DSD-DSS-000 - DsScope Standard Edition

Oscilloscope Software

DSD-DSS-B00 - DsScope Server Edition

Oscilloscope Software

DSD-DSS-C00 - DsScope Remote Client Edition

Oscilloscope Software

DSD-DSV-000 - DsScopeView

Oscilloscope Software

DsScope Signal Recording & Playback Viewer Oscilloscope Software
DSD-DSS-000 DsScope Standard Edition
DSD-DSS-B00 DsScope Server Edition
DSD-DSS-C00 DsScope Remote Client Edition
DSD-DSV-000 DsScopeView
