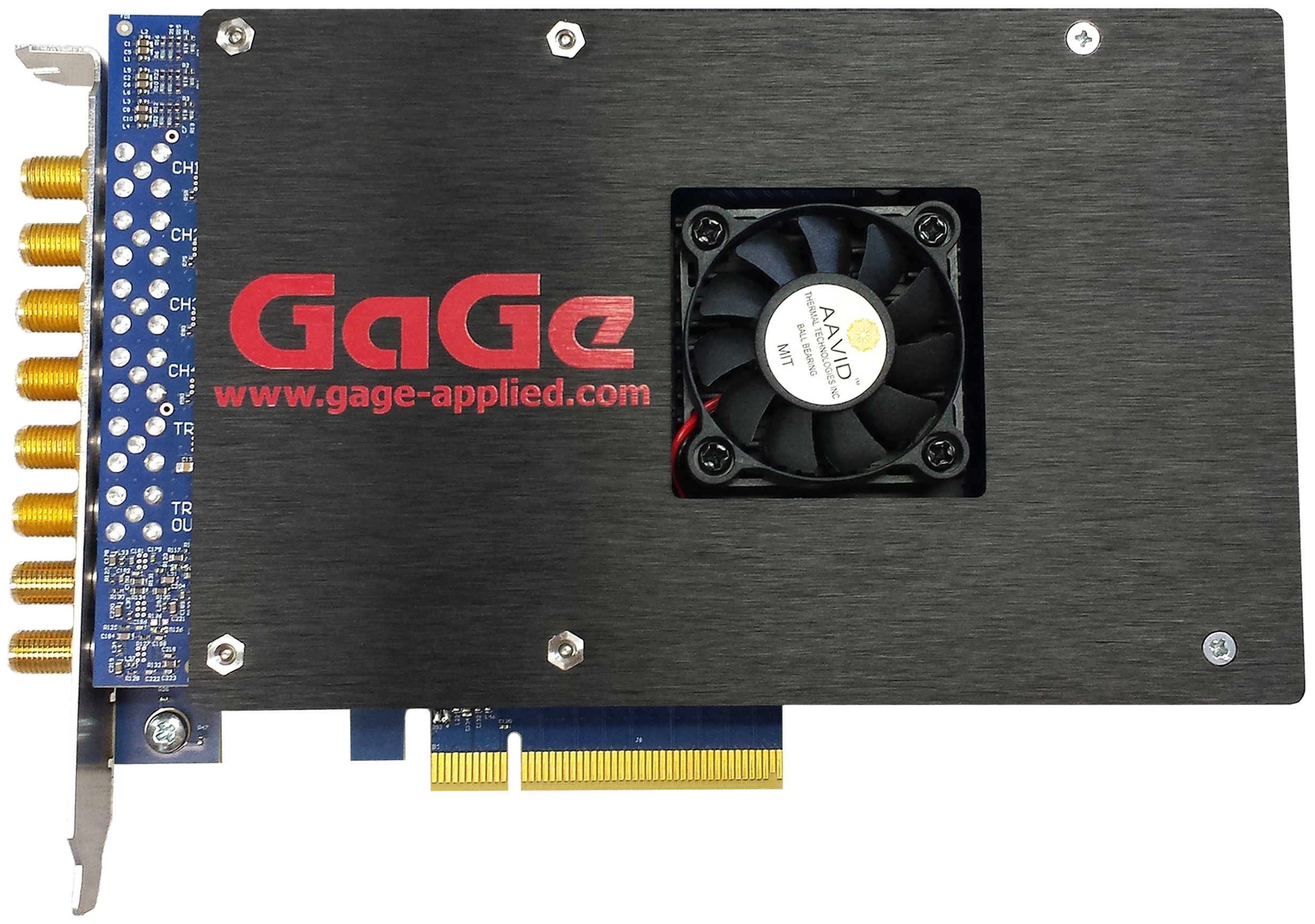

RazorPlus Express - 16-Bit 500MS/s and 250MS/s  High Speed data acquisition boards PCI Express

Main features

  • 2 Digitizing Input Channels
  • 250 MS/s or 500 MS/s Maximum Sampling Rate per Channel
  • 300 MHz Bandwidth @ 500MS/s or 150 MHz Bandwidth @ 250 MS/s
  • 16-Bit Vertical A/D Resolution
  • 4 GS (8 GB) Onboard Sample Memory Standard
  • FPGA Based Applications for Real-Time DSP Functions
  • Dual Port Memory with Sustained PCIe Data Streaming at 4+ GB/s
  • Full-Featured Front-End with DC or AC Coupling and 50 Ω Inputs
  • Ease of Integration with External or Reference Clock In & Clock Out
  • External Trigger In & Trigger Out
  • Full-Height ¾ Length PCI Express (PCIe) Generation 3.0 x8 Card
  • Programming-Free Operation with GaGeScope PC Oscilloscope Software
  • Software Development Kits Available for C/C#, LabVIEW and MATLAB
  • Windows 10/8/7 and Linux Operating Systems Supported
Clear
Price request Datasheet

The RazorPlus Express is available in dual channel models supporting a maximum A/D sampling rate up to 500 MS/s or250 MS/s. ADC data can  be captured in dual channel or single channel modes with six software selectable input voltage ranges at ±100 mV, ±200 mV, ±500 mV, ±1 V, ±2 V, and ±5 V.
The analog input bandwidth is 300 MHz for the 500 MS/s sampling rate model with 50 Ω input impedance or 150 MHz with 1M Ω input impedance. For the 250 MS/s sampling rate model, the analog input bandwidth is 150 MHz for both 50 Ω and 1M Ω input impedance. The input channels are fixed for DC-coupling with software selectable 50 Ω or 1M Ω input impedance. The wider 300 MHz bandwidth is especially useful for RF based applications by enabling direct RF sampling of wider band signals.
AC-coupling is useful for applications in which a small AC signal is sitting upon a large DC bias. In these cases, the DC bias can be removed with AC-coupling to reduce the input range for better signal fidelity. A configuration for fixed AC coupling with software selectable 50 Ω or 1M Ω input impedance is available as an option. The coupling front end is factory hardware configured and is not software switchable.

The RazorPlus Express includes 4 GS (8 GB) of on board acquisition sample memory. The on board acquisition memory size is shared and equally divided among all active input channels (2 or 1) when acquiring data to on board memory.
With the optional eXpert PCIe Data Streaming FPGA Firmware package, the dual-port architecture of the on board memory is utilized as a large FIFO buffer for streaming acquired data to host PC memory via the digitizers PCIe Gen3 x8 interface at sustained rates up to 2 GB/s (2-CHs * 500 MS/s per CH * 2 bytes per sample for 16-bit data). This streaming mode can be effectively utilized to conduct real-time sustained host based signal processing and/or signal recording operations of the acquired data.

RZP-252-016 - RazorPlus Express – 16-Bit Digitizer 2-CHs @ 250MS/s 150 MHz Bandwidth

RazorPlus

RZP-502-016 - RazorPlus Express – 16-Bit Digitizer 2-CHs @ 500MS/s 300 MHz Bandwidth

RazorPlus

RZP-FAC-001 - AC-Coupled Front End Option (Hardware configured at factory.)

RazorPlus

DYN-DSS-000 - Real-Time Streaming Signal Recording Oscilloscope Software

RazorPlus

DYN-DSV-000 - Signal Recording Playback Viewer Oscilloscope Software

RazorPlus

BDL-GPU-000 - CompuScope GPU CUDA Processing Package

RazorPlus

RazorPlus16-Bit 500MS/s and 250MS/s  High Speed data acquisition boards PCI Express
RZP-252-016RazorPlus Express – 16-Bit Digitizer 2-CHs @ 250MS/s 150 MHz Bandwidth
RZP-502-016RazorPlus Express – 16-Bit Digitizer 2-CHs @ 500MS/s 300 MHz Bandwidth
RZP-FAC-001AC-Coupled Front End Option (Hardware configured at factory.)
DYN-DSS-000Real-Time Streaming Signal Recording Oscilloscope Software
DYN-DSV-000Signal Recording Playback Viewer Oscilloscope Software
BDL-GPU-0000CompuScope GPU CUDA Processing Package
