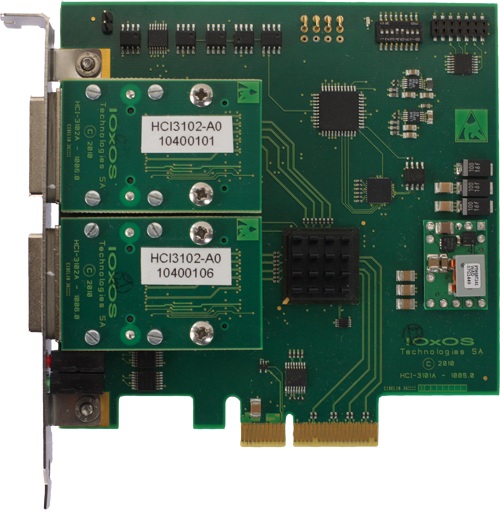

HCI 3101 - Enhanced Dual PCI Express PC Host Adapter

Main features

  • Two(2) PCIe x4 Sockets for Copper and Optical Media Adapters
  • PCIe x4 Non-Transparant Upstream and Transparant Downstream Ports Support
  • Clock Domain isolation for Spread Spectrum & Constant Frequency Clock Support
  • PCIe External Cabling Support
    • PCIe x1, x4
    • GEN 1 /GEN 2
    • Copper extension up to Seven(7) meters
  • CX4 (10 Gigabit Ethernet)
    • Copper
    • Optical x4
Price request Datasheet

The HCI3101 improve the connectivity of its PCI Express Intelligent platforms PEV1101 and IPV1102. The focus of this PCIe Switch based board are:

  • PCIe clock domains isolation to support Spread Spectrum Clocking from the PC mother board
  • Flexible configuration for the PCIe Media selection through the use of removable Media adapters.
