LTX-5515 - Signal Transporter E/O - O/E Converter pair

Main features

  • Transmits analog and digital simutaneously
  • DC to 25 MHz analog bandwidth
  • Two input ranges, +/- 1 V and +/- 5 V
  • Analog signal digitized to 12 bit precision
  • Four independent digital channels
  • DC to 24 MHz digital bandwidth
Price request Datasheet Ask a question

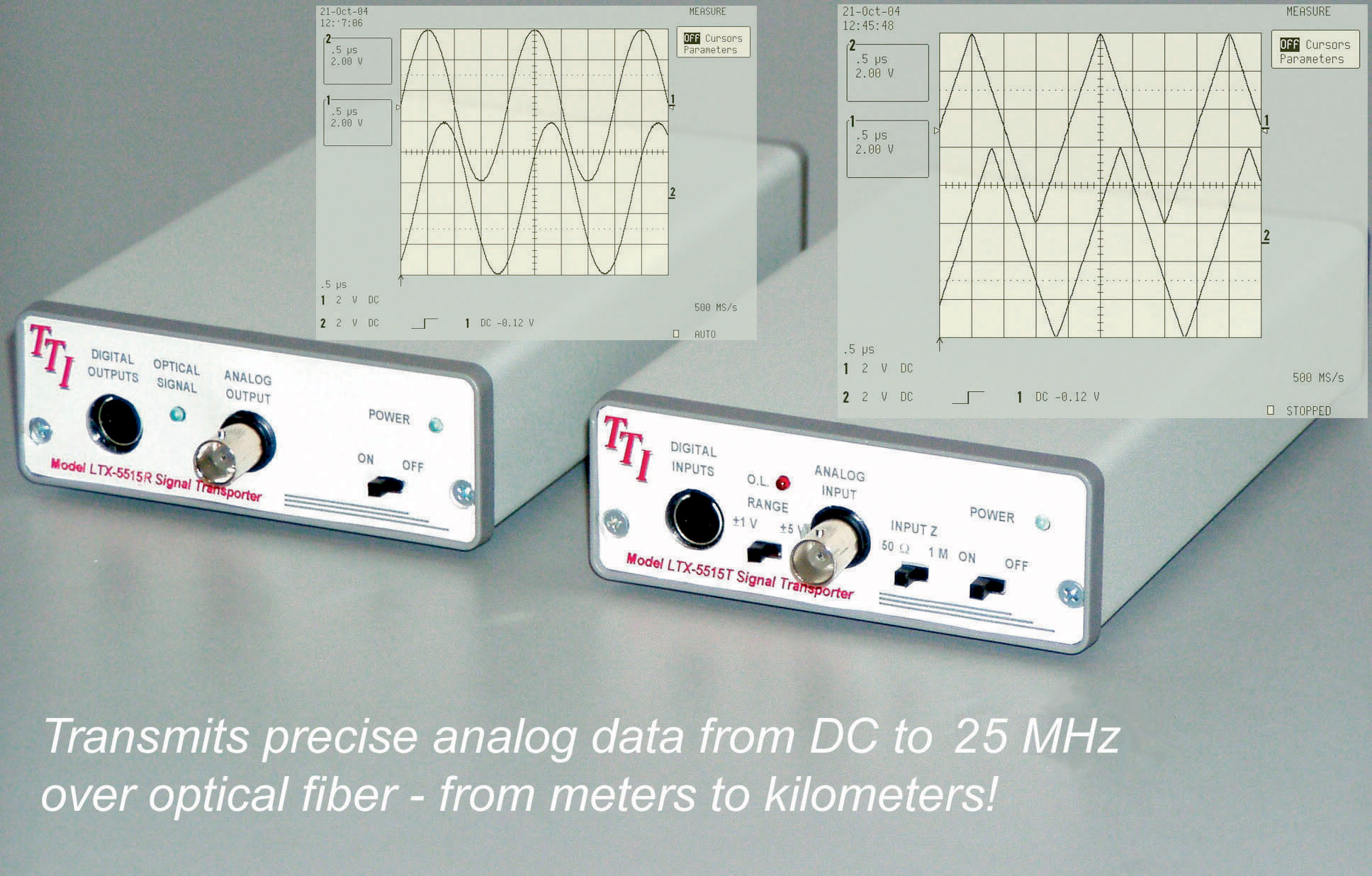

The LTX-5515 “Signal Transporter” Converter pair is designed to transmit analog and digital signals to a remote location via fiber optic cable. This product digitizes the input signals at 100 Ms/s to 12-bit precision, transmits the results over a 2.0 Gb/s fiber link and reconstructs the signal at the far end. The primary applications are those situations in which the signal of interest has a high common mode voltage with respect to the measurement equipment.

Applications include data acquisition for plasma physics experiments, signal transmission and control of equipment at high voltage potentials, transmission of high quality video, and precise noise-free signal transmission in hostile EMI environments.

LTX-5515R-1310 - Singlemode, 2.0 Gb/s Analog/Digital Signal Receiver

Singlemode

LTX-5515T-1310 - Singlemode, 2.0 Gb/s Analog/Digital Signal Transmitter

Singlemode

LTX-5515R-850 - Multimode, 2.0 Gb/s Analog/Digital Signal Receiver

Multimode

LTX-5515T-850 - Multimode, 2.0 Gb/s Analog/Digital Signal Transmitter

Multimode

LTX-5515 Signal Transporter E/O - O/E Converter pair
LTX-5515R-1310 Singlemode, 2.0 Gb/s Analog/Digital Signal Receiver
LTX-5515T-1310 Singlemode, 2.0 Gb/s Analog/Digital Signal Transmitter
LTX-5515R-850 Multimode, 2.0 Gb/s Analog/Digital Signal Receiver
LTX-5515T-850 Multimode, 2.0 Gb/s Analog/Digital Signal Transmitter
