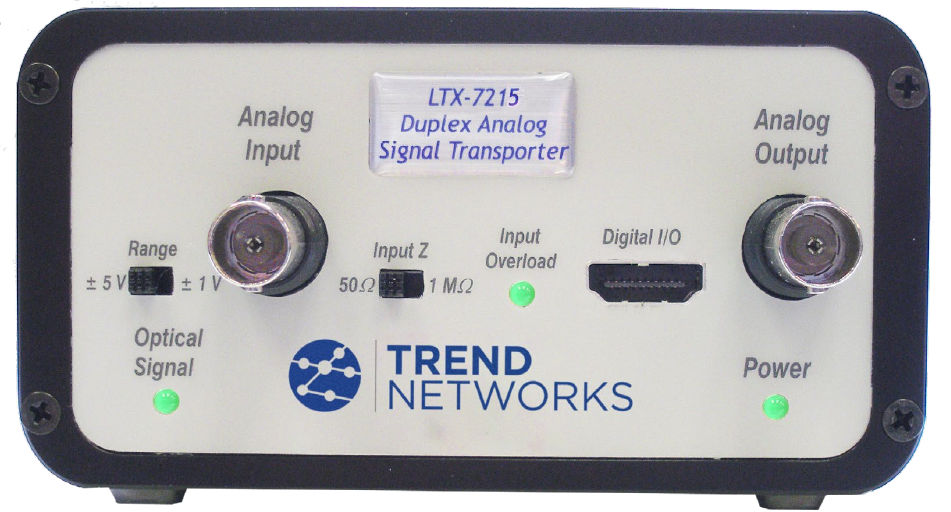

LTX-7215 - Bi-Direction Analog/Digital Fiber Optic Link

Main features

  • Single Fiber Transceiver
  • DC-25MHz Analog
  • Four Independent Digital Channels
  • 0 to 50 Mb/s Per Digital Channel
  • +/-5V or +/-1V Full Scale I/O
  • Digital LVTTL, CMOS/TTL Input
  • Analog I/O – 12 bit Precision
  • AC/DC Operation
Clear
Price request Datasheet

The LTX-7215 “Signal Transporter” Transceivers one analog and four independent channels of digital information over a fiber optic link to over 10 kilometers with Singlemode fiber. Analog signal bandwidth is DC to 25 MHz and signals are digitized to 12 bit precision. While digital signals are transmitted 0=48 Mbs per channel. Digital channels are Sampled up to 100 million times a second. The signals are then multiplexed and transmitted serially over an optical fiber at up to 2 gigabits per second. The far end of the fiber link demultiplexes the signal back into independent outputs. Each of these channels maybe be toggled at rates up to 50 Mb/s.

Using the LTX-7215 in conjunction with a LTX-7225, the result is a remote fiber-coupled 12-bit data acquisition system, digitizing the signal at 50 Mb/s and reconstructs the signal by means of a fast D/A converter. The units may also be employed in the reverse direction if desired.

Applications include data acquisition for plasma physics experiments, signal transmission and control of equipment at high voltage potentials, operations through Faraday shields, and precise noise -free signal transmission in hostile EMI environments.

LTX-7215-1310-BAT - Singlemode, 2.0 Gb/s Analog/Digital Signal Transporter with Battery Pack

Singlemode with Battery Pack

LTX-7215-1310 - Singlemode, 2.0 Gb/s Analog/Digital Signal Transporter

Singlemode

LTX-7215Bi-Direction Analog/Digital Fiber Optic Link
LTX-7215-1310-BATSinglemode, 2.0 Gb/s Analog/Digital Signal Transporter with Battery Pack
LTX-7215-1310 Singlemode, 2.0 Gb/s Analog/Digital Signal Transporter
