M2200-T - Module RF power amplifier 10KHz - 12MHz, 200 watts

Main features

  • Power (P1dB) 200 W
  • Frequency range 0.01 to 12 MHz
  • Power supply 42 VDC
  • Gain 20 dB
  • Harmonic -20 dBc
Price request Datasheet

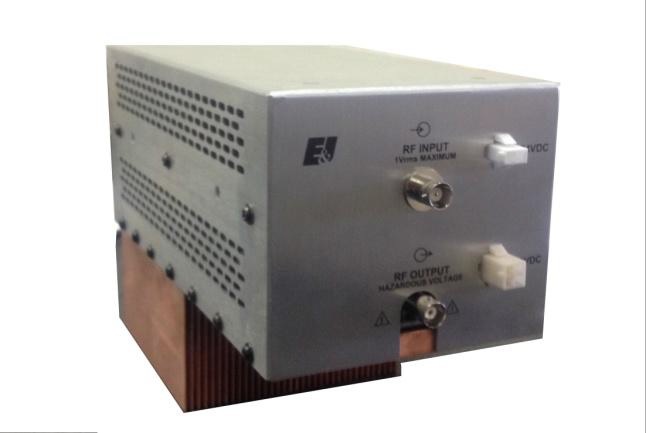

The M-2200 module is a rugged source of RF power for ultrasonics, induction heating and laser modulation. It is a totally solid state solution employing RF DMoS FETs in the power amplification.
The M-2200 reflects E&I’s commitment to reliable and robust RF power.

The M-2200 produces over 200 Watts of linear class A power over a frequency range of 10 KHz to 12 MHz,
with a nominal power gain of 20 dB (+/-1.5 dB). Operation over the entire frequency range is possible without the need for any switching.
