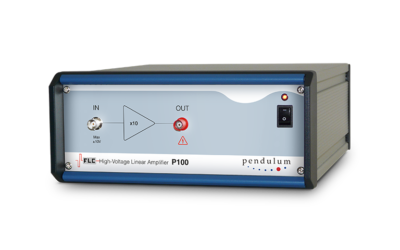

P100 - High voltage amplifier 50Vpp, 2Amps

Main features

  • Bandwidth from DC to 100 KHz fill scale, 400 KHz small signal
  • Amplification X10 times, fixed
  • Load type Resistive || capacitive
  • Input Impedance of 1 Mohm || 10 pF
  • Output Impedance  1 ohm in the linear mode
  • Input Voltage of ±10 V Nominal
  • Output Voltage of  ±50V Max
  • Output Current  of 2A continuous
  • Output Slew Rate  of 20 V/µs
Price request Datasheet Ask a question

The P100 is a general purpose linear amplifier having a fixed amplification of 10 times and capable of bipolar high voltage output of ±50V.
Any function generator or arbitrary waveform generator or any othe signal source with amplitude up to ±10 V can be used as an input device

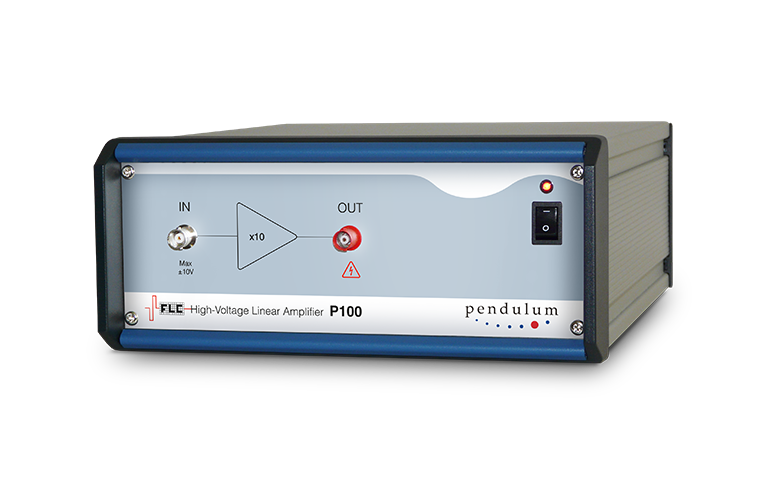

P100 High voltage amplifier 50Vpp, 2Amps
