PXD7113 - PXI(e) Waveform Digitizer 100MS/s 16-Bit

Main features

  • Designed for FlexRay measurements
  • 100 MS/s with 16 Bit resolution
  • Fully isolated design with 2 selectable inputs in differential or single ended mode
  • Multiple instrument and channel synchronization possibilities
  • Built-in timer/counter engine for high speed timer/counter
  • Built-in DVM function for high precision measurement
Price request Datasheet

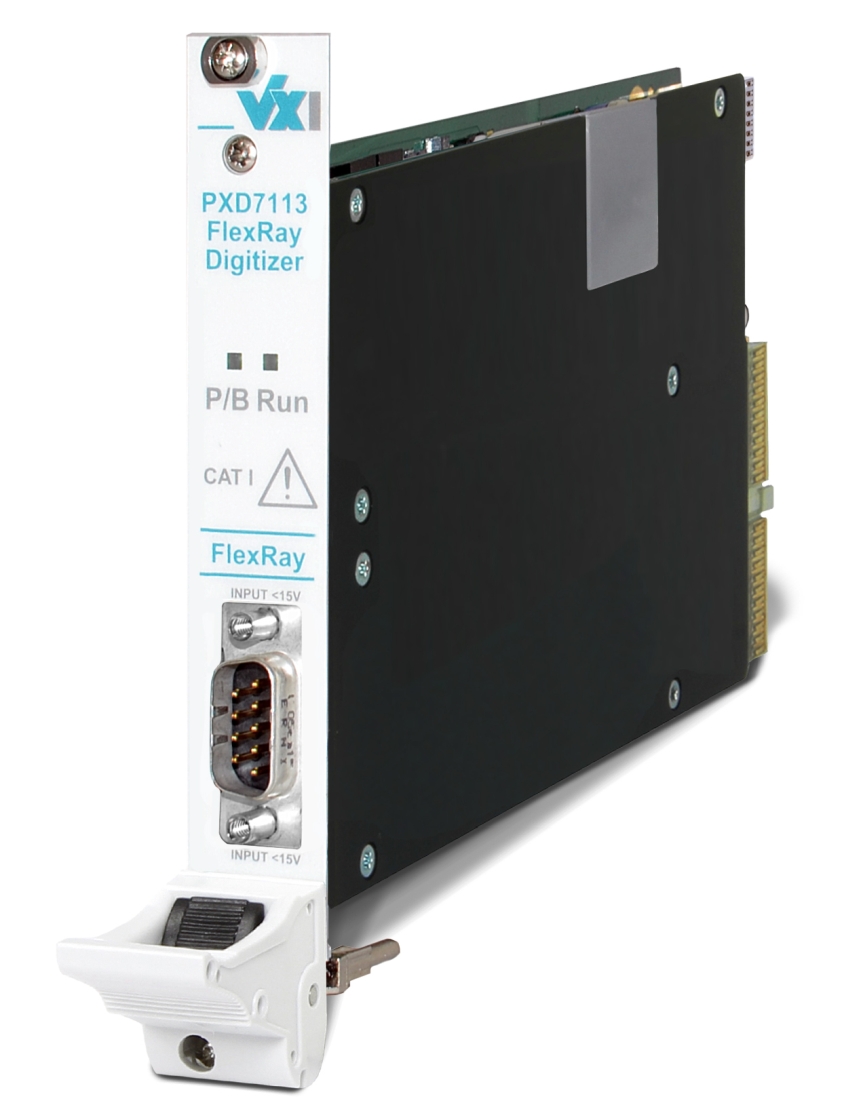

High resolution FlexRay Waveform Digitizer
The PXD7113 FlexRay Digitizer features a 100 MS/s input with 16 Bit resolution, input voltages up to ±10 V and a bandwidth up to 10 MHz.
The PXD7113 FlexRay Digitizer has a 2 MB memory which allows up to 1 million samples. The device has a high common mode rejection ratio (CMRR).

Two multiplexed inputs – selectable as differential or single ended inputs
The PXD7113 FlexRay Digitizer can be configured in differential or single ended mode. In both modes, an optional 95 Ohm termination resistor can be activated. This allows a FlexRay signal measurement without additional signal conditioning.
Data can be acquired before and after the trigger event with a programmable sample counter, that controls the number of data points.

Multiple instrument synchronization possibilities
A great amount of trigger capabilities results in multiple instrument synchronization possibilities. Furthermore the PXD7113 FlexRay Digitizer has a built-in timer/counter and voltage measurement engine.

High throughput design for many applications
The PXD7113 FlexRay Digitizer is designed for high throughput testing. This design guarantees highest quality measurements and is perfect for a wide range of application areas including automotive, communications, scientific applications, military/aerospace and consumer electronics.
